Elinz 7" Monitor Caravan 2 Reversing Camera 4PIN 3AV MIC 12V 24V Trailer Cable Coil
3x 10M Advanced 4PIN Cable~Light Sensor~Sunshade~600TVL
SKU | GEAR7RV4PIN10-RVMAS-CBLT |
Barcode # | 0758277006897 |
Brand | Elinz |
Shipping Weight | 2.5000kg |
Shipping Width | 0.020m |
Shipping Height | 0.100m |
Shipping Length | 0.080m |
Shipping Cubic | 0.000160000m3 |
Help other users shop smarter by writing reviews for products you have purchased.
7" Monitor Caravan 2 Reversing Camera 4PIN 3AV MIC 12V 24V Trailer Cable Coil
SKU: GEAR7RV4PIN10-RVMAS-CBLT
7" Digital Screen w/ Sun Visor
- High definition 800x480 with Sunshade design to avoid sun glare.
CCD Image Sensor
- Capture clear audio and sharp image or video footage with 120° wide view angle.
3x10M advanced 4 PIN cables
- Allows the monitor to power up the cameras no need to connect another power cable
New Upgraded Model
- 600TVL camera that provide high quality and clear images
3 AV inputs
- Can be connected up to 3 reversing cameras

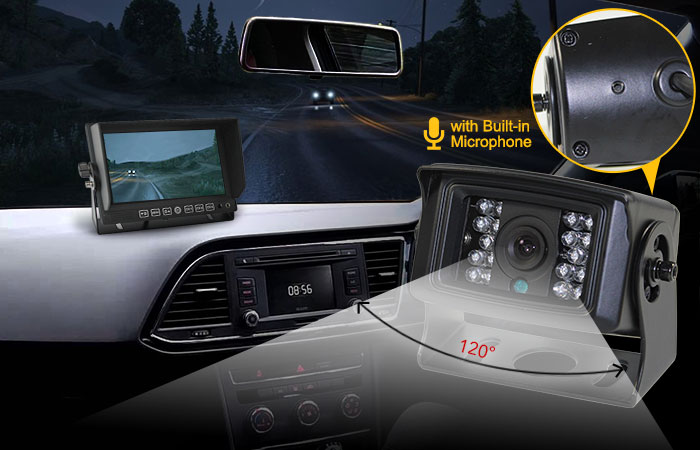

IR Night Vision Camera
- It comes with 18 IR LEDS to provide better night vision.
- 120 degree wide field of view CCD camera.

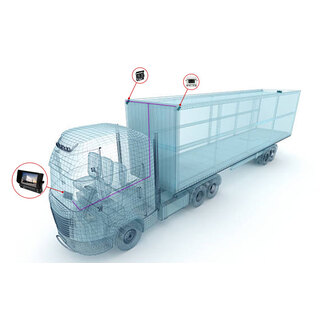

For Buses, Trucks, Heavy Vehiclesph3>
- Reduce blind spots for larger vehicles and added safety.
Built-in Light Sensor
- The monitor will dim itself automatically at night to avoid glare.
4 Angle Viewing Switch

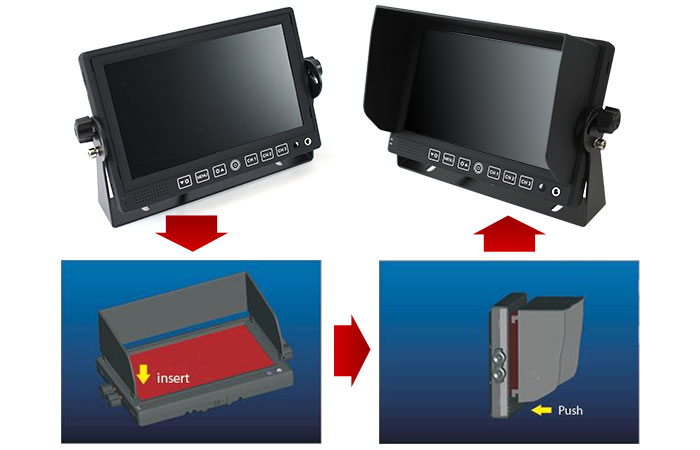

Removable Sun Visor

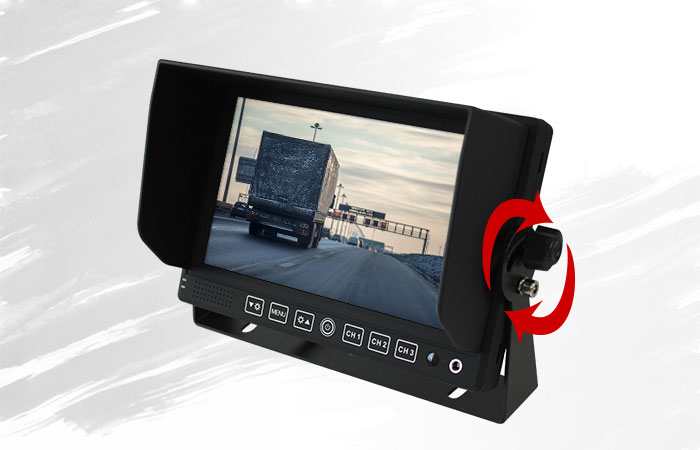

Rotational Bracket
Built-in Loud Speakers
Monitor Parts & Labels
Wiring Labels

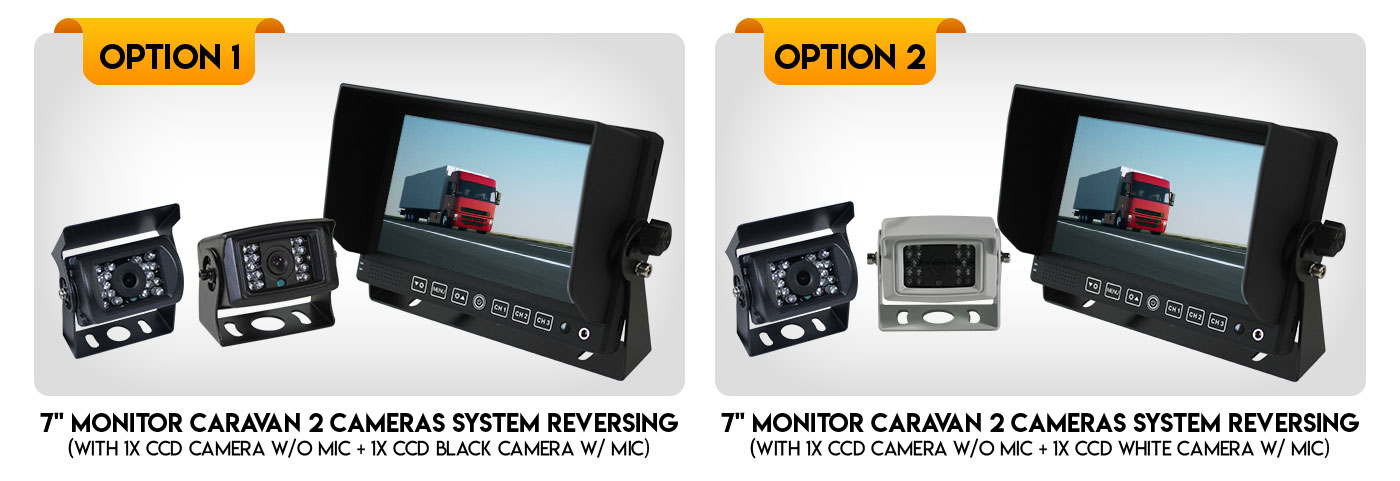

2x Camera Package
- 1x Camera with MIC (choice of black or white) & 1x Camera w/o MIC
- Conveniently communicate on the person behind the vehicle
- Reduce blind spots when parking, backing up or maneuvering
Built-in MIC
- Easy communication with the driver and the person behind the vehicle.
4PIN Camera Colour Variations
- Please choose from option on top of your camera colour preference
Trailer Cable
- Connecting and disconnecting when hitching your caravan is easy with this heavy duty permanent fitting connector
- Cast alloy connector can be mounted adjacent on same bracket
- Suitable for truck trailer, semitrailer or caravan applications

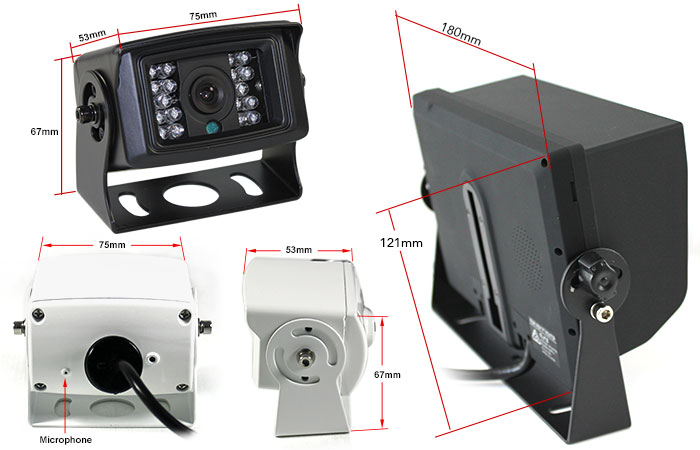

Dimensions

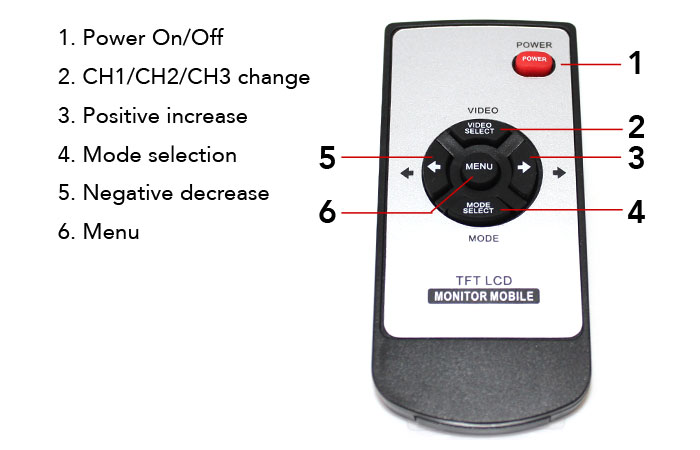

Remote
- * No Batteries included
MORE INFORMATION
Get an added safety and convenience with this reversing camera kit that uses 7" TFT monitor with high definition colour LCD panel which offers almost 4 times more pixels than the other standard 7" screens. The monitor has 3 AV inputs, 2 of which are sound enabled, which means that you can hook up the monitor to a DVD player., mp4 player etc. , to play video or hook it up to a reverse camera with microphone for better security.
It uses standard 4PIN connectors to connect to the cameras which will provide power to each camera attached. There are trigger wires with adjustable time delays on the inputs to enable indicators to be used to trigger an AV channel.
This 7" monitor reverse camera kit is suitable for 12V or 24V vehicle. It has voltage overload protection and reverse polarity protection to ensure the monitor and cameras are not damaged by fitting errors. It is mounted by a substantial U-bracket and sunshade to keep the sun off the monitor.
It has stylish touch button control on the front panel of monitor. It has built-in light sensor with automatic adjustment, the monitor will dim itself automatically at night to avoid glare.
Package with 2x heavy duty reverse camera with high-resolution 120° wide field of view camera with in-built infrared LED night vision capability plus CCD image sensor (made by SHARP company) outputs digital signals that has better picture's clarity color contrasting and sharpness. 1 camera has built-in MIC which you can also choose from white or black colour camera depending on preference and the other camera has no built-in MIC.
PRODUCT HIGHLIGHTS
- High definition 800x480
- Pixels screen (2400Hx480V). Beware of other sellers claiming to sell 1440Hx234V screens. 1440Hx234V = 480x234 pixels = lower resolution screen.
- Built in fusebox (No more messy box dangling on the dash)
- 3 AV inputs
- Can be connected up to 3 reversing cameras
- Light sensor automatic adjustment
- Monitor will dim itself automatically at night no more manual adjustment when the screen gets too bright at night
- Rotational bracket- Allow monitor to be mount on the dash roof of truck/caravan/car or anywhere that you find suitable
- Monitor with 4 Angle viewing Switch
- Image can be adjusted for horizontal vertical mirror and normal viewing
- This monitor reverse camera kit can be used with truck/caravan/bus/car
- 16:9/ 4:3 switch freely
- Heavy duty night vision IR CCD Reversing camera - Get CCD not CMOS if you want to view the camera while driving. CMOS camera are not designed to work for long period otherwise they could get damaged easily
- 3x10M advanced 4 PIN cables
- Allows the monitor to power up the cameras no need to connect another power cable to camera (connect and disconnect the cables between your caravan/trailer easily)
- Built-in loud speaker with AV-IN
- 3 ways video input and 2 ways audio input
- Show rearview automatically when the reverse gear is engaged
- Easy to install- You can DIY as long as you can locate your vehicle's 12V/24V power source
- Industrial grade CCD camera
- High resolution wide field of view camera with in-built infrared LED night vision capability. Camera sun shade and base are constructed from a metal alloy shell to withstand vehicle shock and vibration
- 2x 120 degree Wide angle viewing helps avoid accidents & injuries
- 1x Camera with built-in MIC and 1x camera without MIC
- Heavy duty CCD camera
- Made to be powered on at all times ideal for viewing the rear image while in forward drive
- 600TVL Camera to show clear and sharp images
- CCD image sensor (made by Sharp Company) – outputs digital signals that has better picture clarity, colour contrasting and sharpness than CMOS camera
- Hard metal cased waterproof and mudproof
- IR Night Vision Camera
- With 18 individual Infrared(IR) LED - it shows clear images in low light especially at night circumstances
- IP67 Waterproof rating
- Withstands tough conditions (eg. bush travel)
- Can last for longer without heating up so you can show the rearview at all time
- Video : 3 Channel video input
- V1/V2/V3 - 1 AV input is connected to the reverse camera powered from the reverse light which will switch automatically when reverse gear is induced, the other AV input can be connected to another reverse camera *optional, powered by battery to show the rear image at all time, perfect for truck or caravan that need to monitor the rear al the time
- Recommended for Buses, trucks, Heavy Equipment Vehicles
- This camera is a necessity. Mount at the recommended place and enjoy reversing without worries
- Auto camera switch
- This system also comes with 3 trigger wires for cameras. Once a trigger wire is activated e.g. when the reverse gear is induced it will show the rearview automatically or when the vehicle is put on the turn Right signal the monitor will switch to the Right camera automatically to give clear view on the right side of vehicle before making a turn
ITEM DESCRIPTION
Monitor
- Screen Size: 7" Digital TFT panel with Sunvisor
- Resolution: 800x480
- Aspect Ratio: 16:9 image
- Video Input: 3 way video input- 2 way audio input, with AV-IN
- Power Supply: DC9V-32V
- Recording time: 70 Min
- System: PAL/NTSC Auto –Switching
- Menu: OSD
- Speaker: Built-in Loud speaker
- Varying languages display
- Bracket: with stand and U-shape bracket
- Light Sensor: Automatic adjustment
2x Camera
- 1x Camera with built-in mic and 1x camera without mic
- Day and night colour CCD camera
- 1/4 CCD sharp sensor
- 18 LEDs infrared night vision
- System: PAL:752(H)*582(V) and NTSC:768(H)*494(V)
- Resolution: 600 TV Lines
- Minimum Light: 0 Lux(LED ON)
- Electron shutter: 1/100,000 ,ON/OFF
- S/N ratio; More than 48 Db
- Video output: 1Vp-p 75Ω
- Voltage: 12V/24V
- Vibration resistant, especially designed for mobile usage
- 120 degree angle
Trailer Cable
- 5 PIN AP-TP20 metal connector with male and female connector
- Waterproof function
- 4 PIN metal connector for CCD Camera
- Length selectable
- With elasticity length from 2 000mm to 4 000mm
- Very tight connection durable and reliable
- Connecting and disconnecting when hitching your caravan is easy with this heavy duty permanent fitting connector
- Cast alloy connector can be mounted adjacent on same bracket
- Suitable for truck trailer semitrailer or caravan applications
WHAT'S INCLUDED
- Screws
- 3x 10M 4PIN cable
- RCA to 4PIN adaptor cable
- 7inch digital monitor
- Power Harness
- AV cable
- User manual
- 1x CCD Reversing Camera with built-in MIC (Optional Colour of White or Black)
- 1x CCD Reversing Camera without built-in MIC
- 1x Trailer Cable
- 1x Remote ( * No Batteries included )
*Product on the video may differ from the actual product. Video is displayed to show the importance and use of the product.
