Elinz 7" Monitor HD 12V/24V Reversing CCD 2x TWO Camera 4PIN System 3AV Caravan Kit

SKU: GEAR7SDOM-RVSMA4PIN

Toyota 7" In Dash Car DVD Player Touch Screen
7 inch Screen with Sun Visor

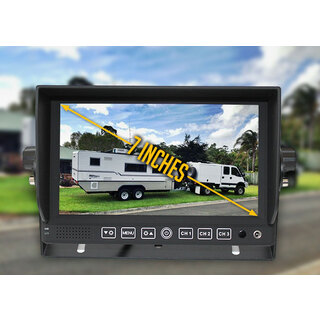

7 Inch HD Monitor

  • 800x480 Digital Screen, Crystal Clear Image
  • This monitor can be used with Trucks / Caravans / Cars
  • Rearview image can also be shown on screen at all times
  • 16:9/4:3 switch freely
  • Can connect to DVD / MP4 / Camera, etc.
4 Angle Viewing Switch

Heavy Duty 480TVL 4PIN Eyeball Reversing Camera

  • Powerful 12 LEDs for night vision
  • 120 degree wide view angle
  • IP67 Waterproof
  • CCD image sensor made by Sharp company
Rotational Brackets

Mini CMOS 4PIN Camera

  • 150 degree wide angle view
  • Small colour mini camera which can be mounted easily on vehicle's bumper
Built-in Speakers

4PIN Cables Included

  • It comes with 1x 5 meters and 2x 10 meters 4PIN connecting cables
Rotational Brackets

Wiring Diagram

  • 4 PIN advanced cables allow the monitor to power up the cameras
Built-in Speakers

Compatible to 12V & 24V Vehicles

  • This can be used with Trucks / Caravans / Cars
  • Premium reversing camera package that would suit car caravan setup
  • The camera behind the caravan can turn on all the time while driving, and the 2nd camera will turn on automatically when reversing.
4 Angle Viewing Switch

Image can be Rotated

  • The image can be rotated up and down, left and right
Monitor Label

Monitor Label

Application

Application

Built-in Light Sensor

Built-in Light Sensor

Removable Sun visor

Removable Sun Visor

Wiring Label

Wiring Label

Connecting Wirings

How to Connect Wirings

Dimensions

Dimensions

Monitor Camera Dimensions

Remote

  • * No Batteries included


MORE INFORMATION

7" Monitor HD 12V/24V Reversing CCD 2x TWO Camera 4PIN System 3AV Caravan Kit

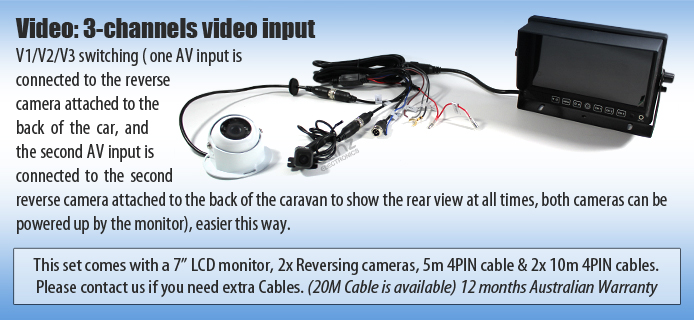

7" monitor with 2x reversing cameras, 2x10m 4PIN cables and1x5m 4PIN cable is a premium reversing camera package that would suit car caravan setup. It has two video inputs, reversing first. This can be used on 12v/24v vehicles like Trucks / Caravans / Cars. With 800x480 Digital Screen crystal clear image and wide angle viewing reverse camera. The camera behind the caravan can turn on all the time while driving, and the 2nd camera will turn on automatically when reversing.

The 4PIN cables allows the monitor to power up cameras and no need to connect another power cable to cameras. This reverse camera system is easy to install. You can DIY as long as you can locate your vehicle's 12V / 24V power source.

PRODUCT HIGHLIGHTS

  • 7 Inch HD Monitor
    • 800x480 Digital Screen, Crystal Clear Image
    • This monitor can be used with Trucks / Caravans / Cars
    • Rearview image can also be shown on screen at all times
    • 16:9/4:3 switch freely
    • Can connect to DVD / MP4 / Camera, etc.
  • Heavy Duty 480TVL 4PIN Eyeball Reversing Camera
    • Powerful 12 LEDs for night vision
    • 120 degree wide view angle
    • IP67 Waterproof
    • CCD image sensor made by Sharp company.
  • Mini CMOS 4PIN Camera
    • 150 degree wide angle view
    • Small colour mini camera which can be mounted easily on vehicle's bumper.
  • 4PIN Cables Included
    • It comes with 1x 5 meters and 2x 10 meters 4PIN connecting cables.
  • Wiring Diagram
    • 4 PIN advanced cables allow the monitor to power up the cameras.
  • Compatible to 12V & 24V Vehicles
    • This can be used with Trucks / Caravans / Cars
    • Premium reversing camera package that would suit car caravan setup
    • The camera behind the caravan can turn on all the time while driving, and the 2nd camera will turn on automatically when reversing.
  • Image can be Rotated
    • The image can be rotated up and down, left and right

ITEM DESCRIPTION

Monitor

  • Monitor Size: 7" Digital Panel with Sunvisor
  • Resolution: 800x R.G.B x480
  • Aspect Ratio: 16:9 image
  • Video Input: 3 Way video input, 2 way audio input with AV-IN
  • Power Supply: DC9V-32V
  • System: PAL/NSTC Auto-Switching
  • OSD Menu
  • Speaker: Built-in Loudspeaker
  • Bracket: With stand & U shape bracket
  • Light Sensor: Automatic adjustment

Dome Camera

  • Sensor: Sharp ¼" CCD image sensor
  • TV System: PAL/NTSC
  • Effective pixel: 512*582px, 512*492px
  • Sensing Area: 9.6um*6.34um
  • Scanning System: 2:1 interface
  • Sync System: Internal
  • Resolution: 480TVL
  • Lens: 2.8mm/120deg
  • Electronic Shutter: 1/60-1/15,000sec
  • Video Output: 1.0Vp-p,75Ohm
  • S/N Ratio: More than 48db
  • Waterproof: IP67-IP68
  • Minimum Illumination: 0.2Lux/F1.8(0 Lux with LED)
  • Power Supply: 12V

Mini CMOS Camera

  • Connection: 4PIN plug
  • CMOS PAL
  • View Angle: 150 degree
  • Waterproof
  • Automatic while balance AGC and BLC

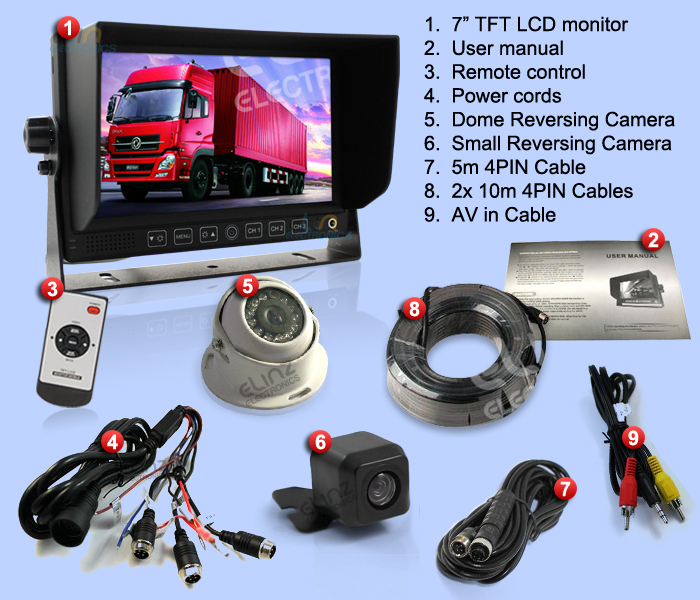

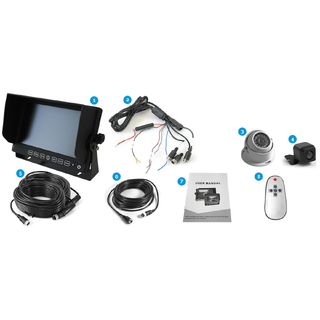

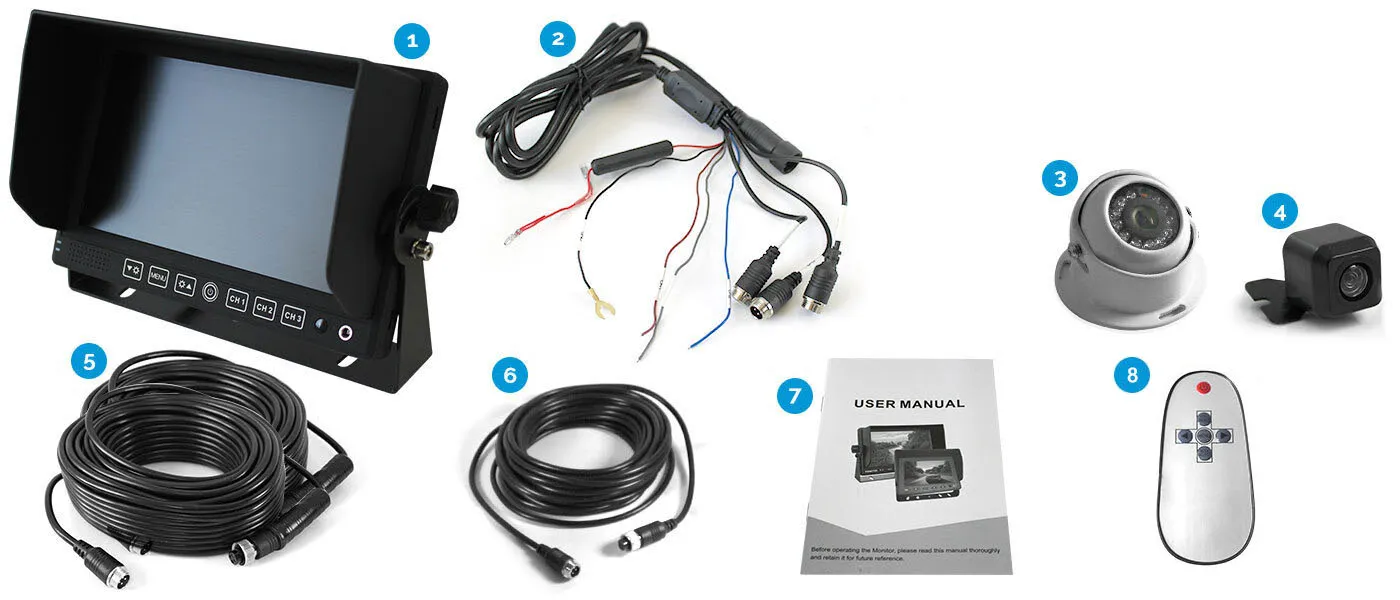

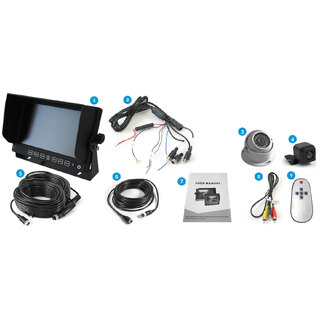

WHAT'S INCLUDED

1. 1x 7 Inch TFT LCD Monitor

2. 1x Power Cord

3. 1x Dome Reversing Camera

4. 1x CMOS Mini Camera

5. 2x 10m 4PIN Cable

6. 1x 5m 4PIN Cable

7. User Manual

8. 1x AV in Cable

9. 1x Remote ( * No Batteries included )

whats included GEAR7S
