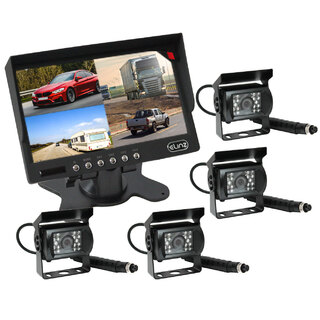

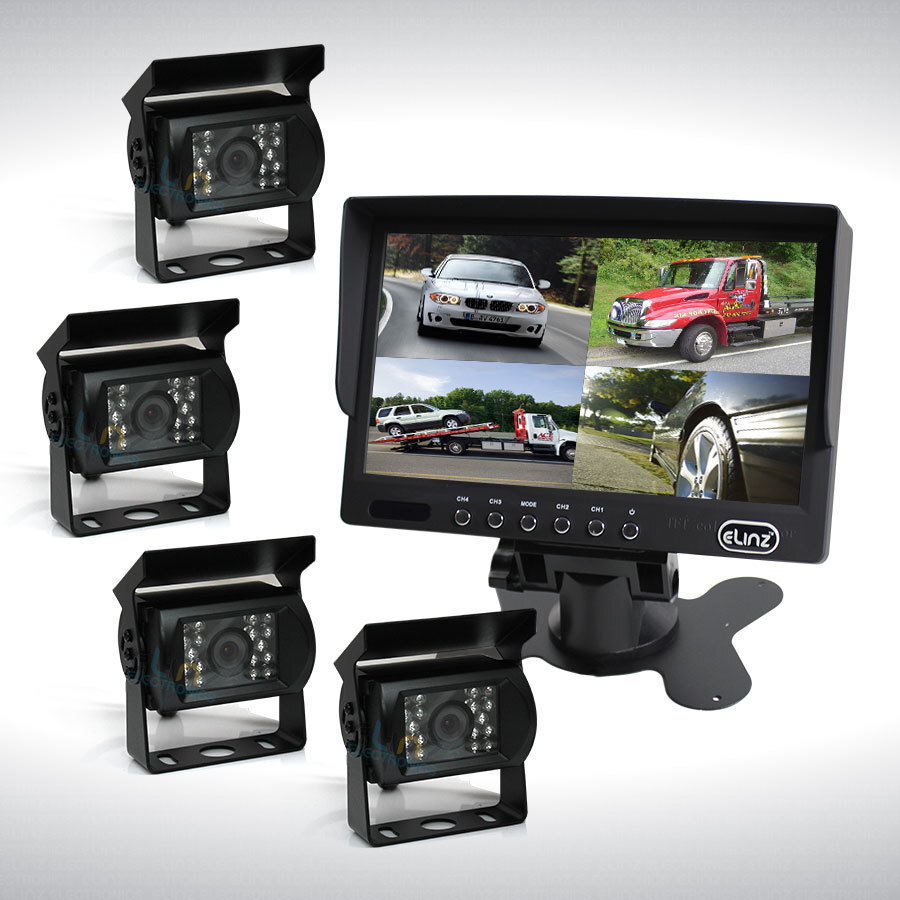

7" Quad Monitor Splitscreen with 4 Camera Package

SKU: M7SSPLTRV4PIN10-3RV2-10M

sine wave inverter 1000w main image

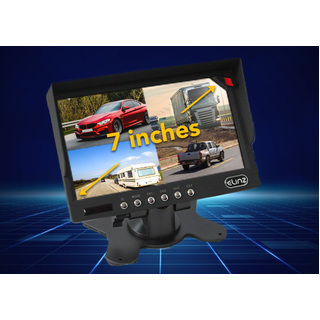

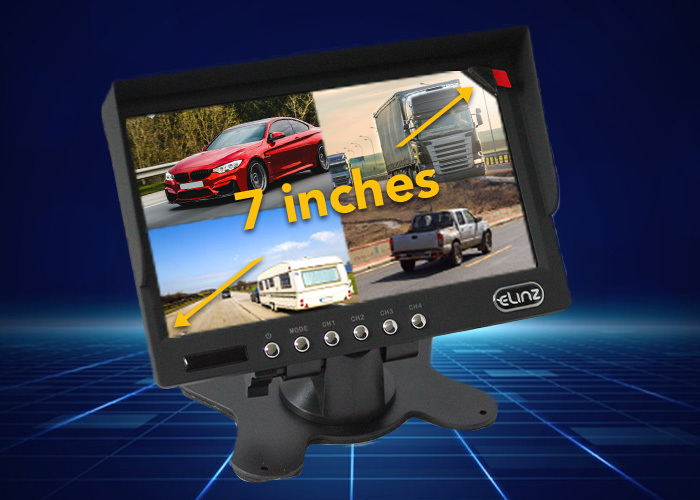

7" TFT LCD Monitor w/ Sunshade Design

  • 7" Colour TFT-LCD wide screen with Sunshade design
  • Prevent the glare of sunlight, with better picture clarity, color contrasting and sharpness in large screen

Wide Screen Display

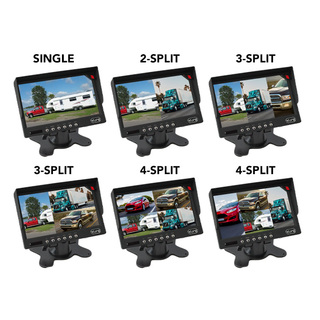

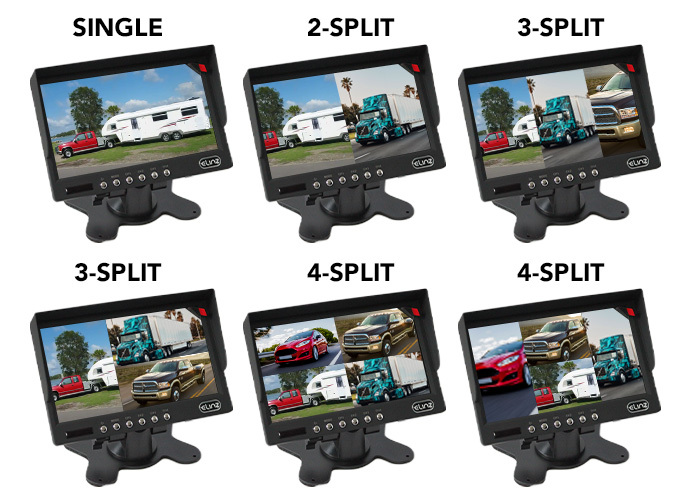

Monitor Splitscreen/Quadscreen Display

Monitor Split Screen Display

  • Different screens can be displayed: single, split, triple or quad screen view

Full Function Wireless Remote Control, OSD Menu

  • Control froma distance without needing to push buttons on monitor.

Built-in Quad Control Box, Support Four Camera

  • The camera can be applied at the front, corner and/or back of the vehicle. You ca view one camera while driving and a second camera will turn on automatically when reversing, or have all 4 cameras showing at the same time, can be divided into 1,2 or 4 demo screen.

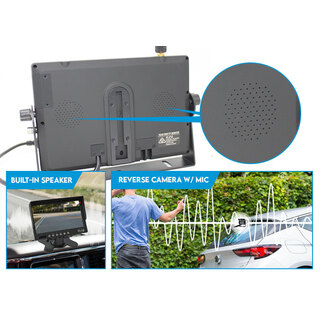

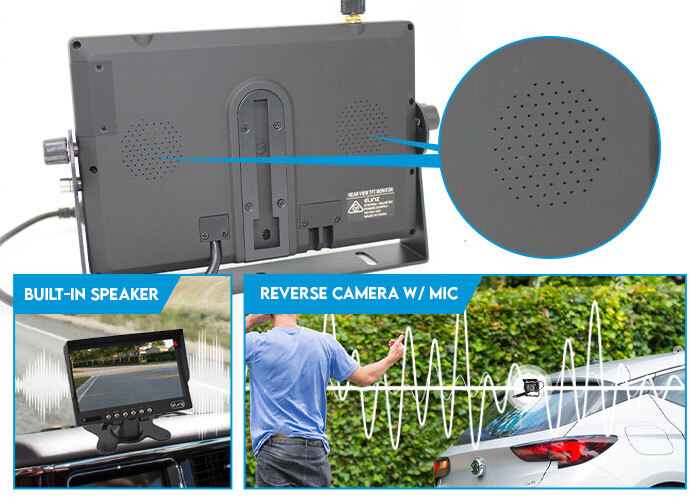

Built-in Speaker

  • This speaker works with reverse cameras with mic so you can hear audio or instructions when reversing

Suitable or 12V/24V power supply

  • Ideal for regular 12V car battery or heavy duty 24V truck

Industrial Grade Heavy Duty IR Night Vision Colour CCD Camera

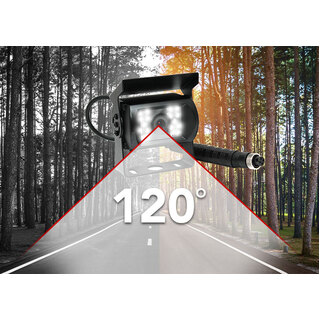

  • 120degree wide field of view CCD camera
  • 18 built-in IR LED

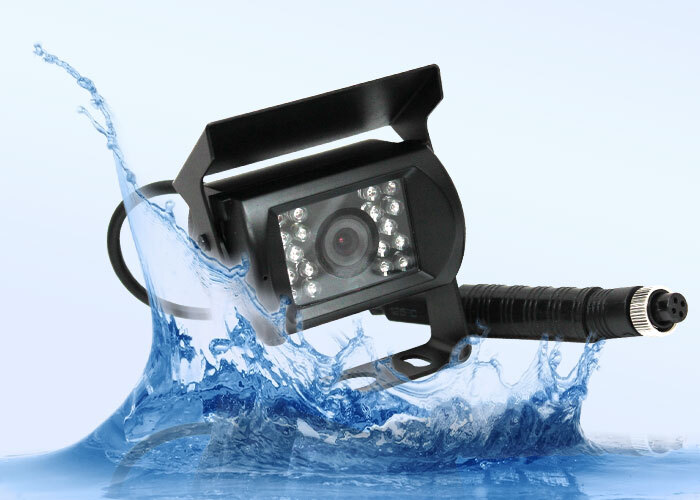

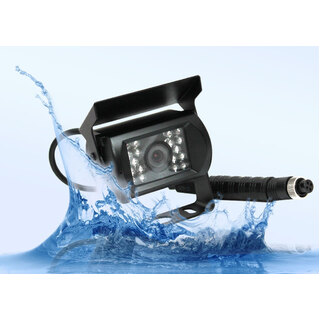

Weather Shock and Water Resistant Rated IP67/IP68

  • High rating making it very durable and suitable in all environments

Installation Diagram

Easy to Install

  • User manual with simple DIY installation instructions

Wiring Diagram

Product Dimensions

Camera Dimensions

Product Labels

Product Views

MORE INFORMATION

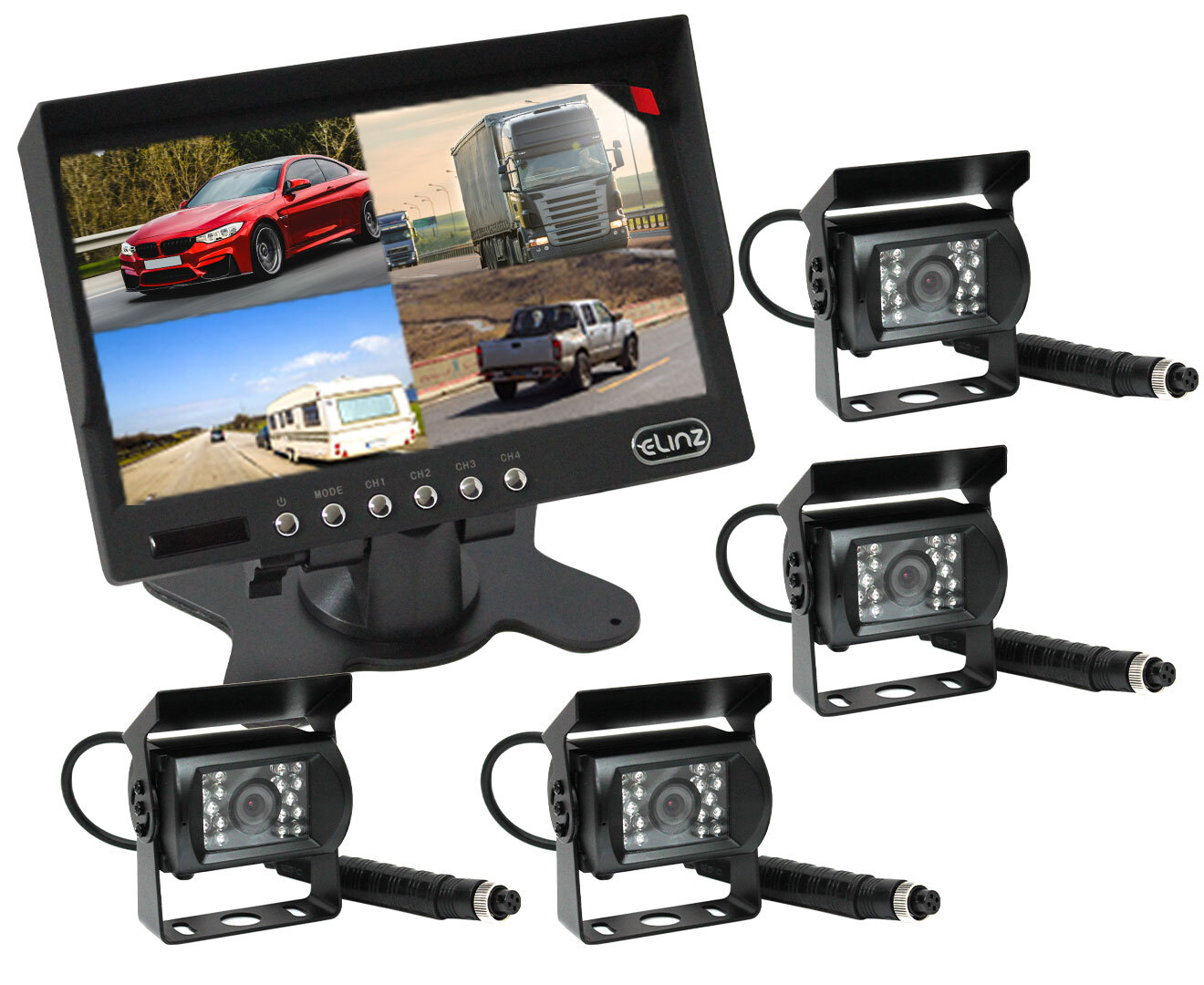

7" Quad Monitor Splitscreen with 4 Camera Package

This quad screen colour rear view monitor is ideal for large vehicle where viewing for more than one camera at the same time is essential.

Recommended for Buses/ Trucks/ Heavy Equipments, safe and easy to install.

This system is mainly used for trucks, trailers, buses and other similar heavy duty vehicles. It includes 1 quad monitor (it can be selected to display full, split, triple or quad pictures), and an optional of up to 4 night vision reversing cameras (2 of them can be used for back views and the other two can be used for side views).

Actually, you can choose 1 to 4 cameras in this system to really meet your need. The cameras can be installed on the front, back, both sides or even inside the container of the trailer. The monitor will automatically switch to display the full picture while parking, turning left or right.

PRODUCT HIGHLIGHTS

  • 7" TFT LCD Monitor w/ Sunshade Design
    • 7" Colour TFT-LCD wide screen with Sunshade design
    • Prevent the glare of sunlight, with better picture clarity, color contrasting and sharpness in large screen
  • Built-in quad control box, support four camera
    • The camera can be applied at the front, corner and/or back of the vehicle. You ca view one camera while driving and a second camera will turn on automatically when reversing, or have all 4 cameras showing at the same time, can be divided into 1,2 or 4 demo screen.
  • Professional advance 4 Pin Cable with 2x10m connector
    • No need another power wire for camera
  • Built-in Speaker
    • This speaker works with reverse cameras with mic so you can hear audio or instructions when reversing
  • Suitable or 12V/24V power supply
    • Ideal for regular 12V car battery or heavy duty 24V truck
  • Industrial Grade heavy duty IR night vision Colour CCD camera
    • 120degree wide field of view CCD camera
    • 18 built-in IR LED
  • Weather shock and water resistant rated IP67/IP68
    • High rating making it very durable and suitable in all environments
  • The image can be rotated up and down, left and right
  • Full Function wireless remote control, OSD menu
    • Control froma distance without needing to push buttons on monitor.
  • Easy to install-user manual with simple DIY installation instructions

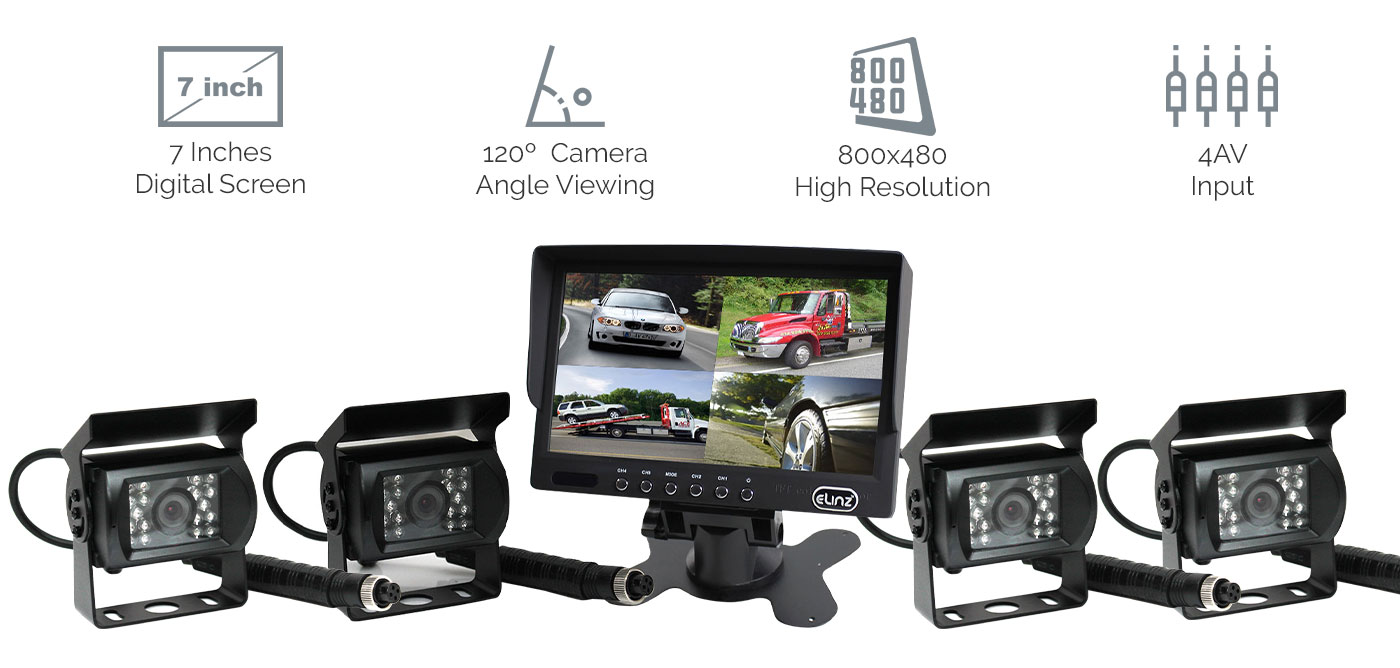

ITEM DESCRIPTION

  • 7 inch TFT LCD monitor
  • 16:9 wide screen display
  • 4 ways AV input
  • PAL & NSTC auto- switching
  • Resolution 800x480
  • Power supply 12V/24V compatible
  • 120° wide angle CCD camera
  • 18 IR LEDs with night vision
  • Waterproof rating IP67/IP68

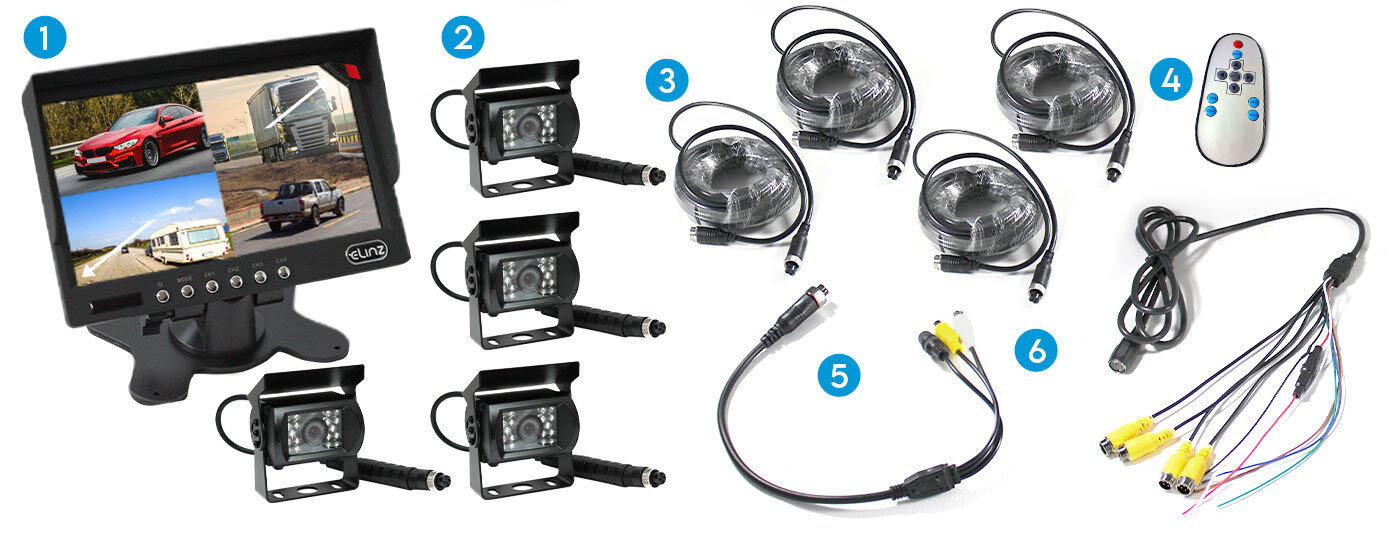

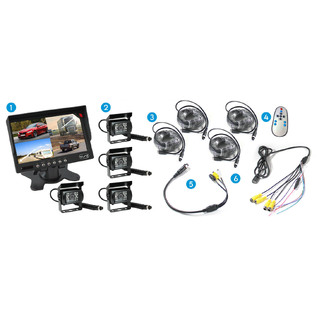

WHAT'S INCLUDED

1. 1x 7" Quad Splitscreen Colour Monitor

2. 4x CCD Colour Camera

3. 4x 10M 4PIN Cable

4. 1x Remote Controller * No batteries included

5. 1x VGA Cable

6. 1x Power Cord
