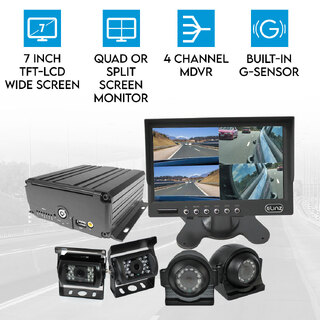

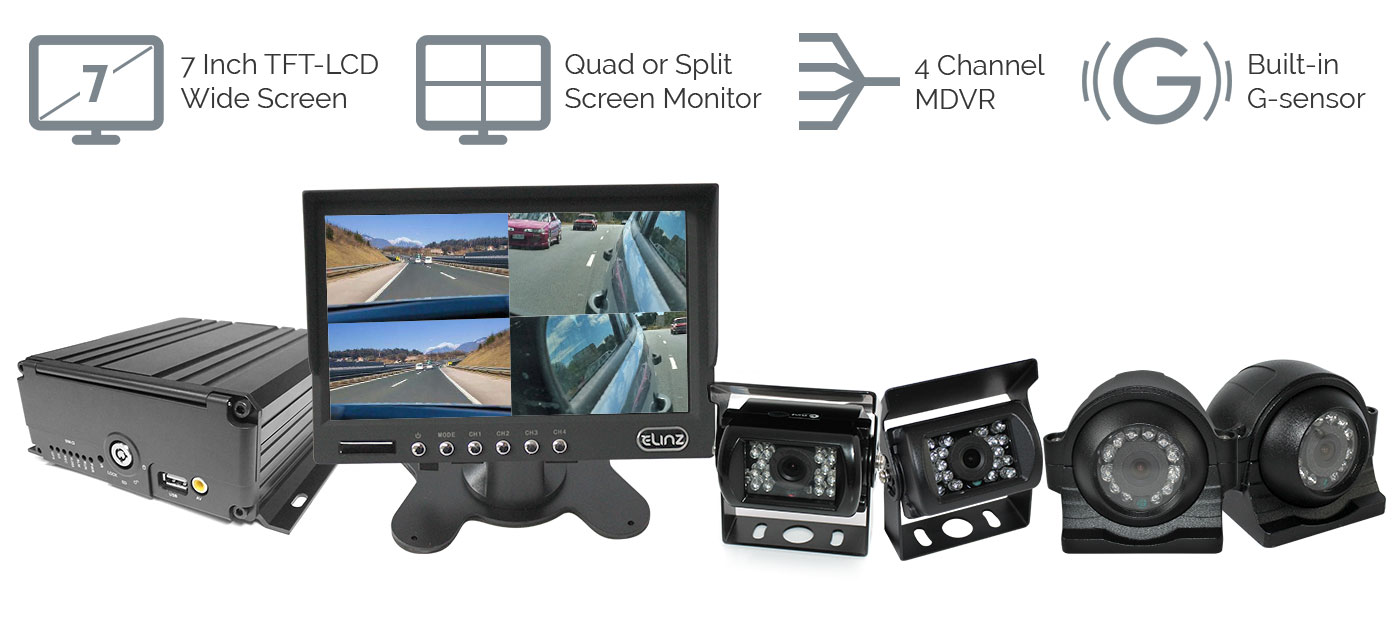

7" Quadscreen 4CH MDVR GPS Tracking 4G WiFi 1080P AHD HDD Fleet Fuel Management

SKU: M7SPL-MDVR-RV4P-FWR-BUSx2

7" Splitscreen 4CH MDVR GPS TrackingFleet Monitoring
7" Monitor with Sunshade design

7" Colour TFT-LCD wide screen with Sunshade design

  • 16:9 wide screen display
  • 4 ways AV input
  • PAL & NSTC auto- switching
  • Resolution 800x480
  • Built-in Speaker
  • Prevents sun glare, offers better picture clarity, color contrasting, and sharpness in a large screen.
Split Screen Monitor for Reversing Camera

Quad or Split Screen Monitor

  • Can be divided into 1,2 or 4 demo screen output.
  • Has a durable bracket that can be mounted on the back which will allow it to stand on the dash of the vehicle.
4 Channel MDVR

4 Channel MDVR

  • This Mobile Digital Video Recorder supports up to 4 cameras that records in high definition (1080p video quality), real-time recording, with audio recording and playback features that work at the same time.
Vehicle Surveillance System MDVR

Vehicle Surveillance

  • Protective measure for fleet operators as well as drivers against crime inside the vehicle and records evidential proof in case of some accidents.
  • DVRs that record everything that happens inside and outside. The system ensures safety and enhances fleet management efficiency.
Built-in GPS MDVR

GPS

  • Built-in GPS Module, Record GPS track and speed. Provides Vehicle Mapping so you can instantly track your vehicle and equipment anywhere they may be.
4G WiFi MDVR Revering Camera

4G and WiFi

  • Built-in 4G communication module FDD-LTE/TDD-LTE and WiFi module (optional 2.4/5.8GHz) provides live video streaming wherein the device sends video to the server and records it to the HDD/SD simultaneously.
  • Designed for fleet remote monitoring, usable for your PC, IOS, or Android devices.
Fleet Management System

Fleet Visibility

  • Monitor your fleet of vehicles from anywhere on the planet in real-time, includes location tracking, fuel usage and maintenance records.
  • Locate your mobile workforce and track their activities easily from your office or on the go.
  • Remote monitoring via CMS platform for PC and CMSV6 app for Android and iOS devices
G-Sensor acceleration/de-acceleration

G-sensor

  • Built-in G-sensor for harsh acceleration/de-acceleration detection
Historical Track Playback MDVR

Historical Track Playback

  • View vehicles current locations and historical driving trajectories that can be clearly queried on Google map
MDVR Recording Modes

Recording Modes

  • Engine On Recording, Auto Recording, Time Recording, Motion Detection Recording
In-vehicle monitoring systems

Reduce maintenance cost

  • With in-vehicle monitoring systems and management platform that can generate useful analytics data that will help your company make more informed decisions. It also improves fleet performance, reduces operating expenses, and maintenance cost.
MDVR Data Protection

Data Protection

  • Using UPS patent protection technology, the device will still work even after 3 to 8 seconds when the external power supply is cut off. This is to prevent the video file from accidental damages or being corrupted, and will save the data before the system totally shuts down abnormally.
Hard Disk heating Technology

Hard Disk heating Technology

  • Support hard disk heating technology, can work at -40 ℃ -70 ℃
4 PIN Reversing Camera Monitor Kit

4 PIN Connection

  • Reliable aviation connector input and output port to connect cameras and monitor, easy to install,pluck and plug,stronger anti-seismic property.
Robust Design MDVR

Robust design

  • Cast aluminum enclosure. Patented design
Reliable Forward Camera

Forward Camera real time images

  • Reliable and durable reversing camera. Instead of showing mirror images like what most reverse cameras available today are doing, this camera system lets you see images in forward view. This basically means that when you use the camera to record what's in front or even at the back of your vehicle, you'll see the objects in their original places or position.
Heavy-duty Reversing Camera

Tough and heavy-duty camera

  • The cameras are built and designed to last. In addition, each camera comes in a hard metal case. Because it is waterproof and mud proof, it can withstand abuse and be exposed to the elements for an extended period of time. The reversing camera is shock resistant, too, so it can withstand strong vibrations without affecting picture quality.
CCD Sensor Reversing Camera

CCD image sensor from Sharp

  • The reversing cameras feature a CCD image sensor from the Sharp Company for better picture clarity, colour contrast, and sharpness.
  • They also have night vision as each camera comes infrared LED to enable users to see clear images, even at night or in low light conditions.
  • Heavy duty CCD camera is hard metal cased waterproof and mud proof. Can last for longer without heating up so you can show the rearview at all time.
7" QuadscreenMDVR GPS AHD HDD Fleet Monitoring

Dimensions

MDVR Wiring Diagram

Wiring Diagram

MDVR System Front Panel

MDVR Front Panel

MDVR Management Back Panel

MDVR Back Panel

Full Function Wireless Remote Control, OSD Menu

  • Control from a distance without needing to push buttons on monitor.


SAMPLE SOFTWARE SCREENSHOTS

MDVR system screenshots

MORE INFORMATION

If you offer truck services or simply handle a fleet, then you are aware that it can be a difficult task. This is why you need an effective GPS tracking and fleet monitoring device.

This 7" Quad Monitor provides you with real-time surveillance of your vehicles as well as GPS tracking to ensure that you know your vehicles will reach their destinations on time. Being able to monitor your vehicles in real-time can help you manage your fleet efficiently without any hassle. This is an important tool to have installed in your vehicles because it not only provides safety for your vehicles but for the driver as well.

The device comes with sensors from knowing how your vehicle is accelerating and decelerating in case the driver is fatigued. In cases of crime, this will also serve as evidence for your driver’s protection or if they may be involved in an accident, you will be able to identify who is at fault. The most important benefit of using this device is that it generates accurate and useful analytic data which you can use to lower maintenance costs for each of your vehicles.

With Built-in 4G communication module FDD-LTE/TDD-LTE and WiFi module provide live video streaming wherein the device sends video to the server and records it to the HDD/SD simultaneously.

Making it more convenient, safe, protected, and adds up confidence not just for the business owners but also for the drivers.

* Shipping is approximately 4-5 weeks

PRODUCT HIGHLIGHTS

  • 7" Colour TFT-LCD wide screen with Sunshade design
    • 16:9 wide screen display
    • 4 ways AV input
    • PAL & NSTC auto- switching
    • Resolution 800x480
    • Built-in Speaker
    • Prevents sun glare, offers better picture clarity, color contrasting, and sharpness in a large screen.
  • Quad or Split Screen Monitor
    • Can be divided into 1,2 or 4 demo screen output.
    • Has a durable bracket that can be mounted on the back which will allow it to stand on the dash of the vehicle.
  • 4 Channel MDVR
    • This Mobile Digital Video Recorder supports up to 4 cameras that records in high definition (1080p video quality), real-time recording, with audio recording and playback features that work at the same time.
    • Supports 1080P / 720P cameras
    • Supports up to 4 analog cameras inputs or compound inputs for 2 HD cameras and 2 analog cameras
  • Vehicle Surveillance
    • Protective measure for fleet operators as well as drivers against crime inside the vehicle and records evidential proof in case of some accidents.
    • DVRs that record everything that happens inside and outside. The system ensures safety and enhances fleet management efficiency.
  • GPS
    • Built-in GPS Module, Record GPS track and speed. Provides Vehicle Mapping so you can instantly track your vehicle and equipment anywhere they may be.
  • 4G and WiFi
    • Built-in 4G communication module FDD-LTE/TDD-LTE and WiFi module (optional 2.4/5.8GHz) provides live video streaming wherein the device sends video to the server and records it to the HDD/SD simultaneously.
    • Designed for fleet remote monitoring, usable for your PC, IOS, or Android devices.
  • Fleet Visibility
    • Monitor your fleet of vehicles from anywhere on the planet in real-time, includes location tracking, fuel usage and maintenance records.
    • Locate your mobile workforce and track their activities easily from your office or on the go.
  • G-sensor
    • Built-in G-sensor for harsh acceleration/de-acceleration detection
  • Historical Track Playback
    • View vehicles current locations and historical driving trajectories that can be clearly queried on Google map
  • Recording Modes
    • Engine On Recording, Auto Recording, Time Recording, Motion Detection Recording
  • Reduce maintenance cost
    • With in-vehicle monitoring systems and management platform that can generate useful analytics data that will help your company make more informed decisions. It also improves fleet performance, reduces operating expenses, and maintenance cost.
  • Data Protection
    • Using UPS patent protection technology, the device will still work even after 3 to 8 seconds when the external power supply is cut off. This is to prevent the video file from accidental damages or being corrupted, and will save the data before the system totally shuts down abnormally.
    • Audio and video files are protected, cannot be formatted and read by computer without the provided player.
    • With fully enclosed lock design, it can prevent sabotage effectively
  • Hard Disk heating Technology
    • Support hard disk heating technology, can work at -40 ℃ -70 ℃
  • Acceleration/G-sensor
    • Record the vehicle's speed, gravitational changes to analyze any out of the ordinary events that may happen, for example, if the driver suddenly brakes or makes a sharp turn.
  • Wide Operating Voltage
    • Can be widely used on 8V-36V vehicles like buses, logistics vehicles. School bus, police car, Kim. Transport vehicles, fuel trucks and other vehicle monitoring
  • Large Storage Capacity
    • Store your recordings into a hard disk drive of up to 2 terabytes HDD (2.5 inches hard disk size) unlike other cheap MDVR models that only uses an SD card to save their recordings. It also has 2 built-in SD card slot that supports up to 128GB capacity
  • CMS management
    • The functions of video preview, GPS uploading, alarm uploading,central command dispatch, parameter configuration and so on are realized through wireless network.
  • 4 PIN Connection
    • Reliable aviation connector input and output port to connect cameras and monitor, easy to install, pluck and plug, stronger anti-seismic property.
  • Robust design
    • Cast aluminum enclosure. Vibration protection design.Patented design
  • Forward Camera real time images
    • Reliable and durable reversing camera. Instead of showing mirror images like what most reverse cameras available today are doing, this camera system lets you see images in forward view. This basically means that when you use the camera to record what's in front or even at the back of your vehicle, you'll see the objects in their original places or position.
  • Tough and heavy-duty camera
    • The cameras are built and designed to last. In addition, each camera comes in a hard metal case. Because it is waterproof and mud proof, it can withstand abuse and be exposed to the elements for an extended period of time. The reversing camera is shock resistant, too, so it can withstand strong vibrations without affecting picture quality.
  • CCD image sensor from Sharp
    • The reversing cameras feature a CCD image sensor from the Sharp Company for better picture clarity, colour contrast, and sharpness.
    • They also have night vision as each camera comes infrared LED to enable users to see clear images, even at night or in low light conditions.
    • Heavy duty CCD camera is hard metal cased waterproof and mud proof. Can last for longer without heating up so you can show the rearview at all time.

ITEM DESCRIPTION

Monitor and MDVR

  • 7" Colour TFT-LCD wide screen with Sunshade design
  • Quad or Split Screen Monitor
  • Video Compression:H.264
  • Video System PAL or NTSC (1.0V p-p/75Ω)
  • Video Resolution:1080P/720P,CIF,HD1 or D1 Optional,1~25 fps Adjustable
  • Recording Mode:Engine On Recording,Auto Recording,Time Recording,Motion Detection Recording
  • 4 4PIN Video Input,4 CH Real Time Recording
  • Display:External AV Out Slot
  • Storage:HDD+Micro SD card,max 2 TB 2.5'' SATA HDD+128GB SD Card
  • ** Hard disk and SD card not included.(Please add on from optional accessories below)

2x Side View Cameras

  • 2x Side View Cameras
  • Camera Angle: 90 degree wide angle
  • LEDs: 12 IR LEDs
  • IP68 waterproof rating
  • Image Sensor: CCD image sensor (made by SHARP company)
  • Compatibility: NTSC/ PAL switch
  • Horizontal Resolution: 420 TV Lines
  • Connection: Advanced 4 PIN cable. Allowing the monitor to power up the camera no need to connect another power cable to camera*
  • NTSC/ PAL switch
  • Robust Heavy Duty Make - 10G Vibration Ultra Bright Wavelength

Forward View Camera and Reverse Camera

  • Forward View Camera and Reverse Camera
  • Camera Angle 120 degree Wide angle
  • LEDs: 18 IR LEDs
  • Colour infrared night vision waterproof CCD reverse camera
  • Image Sensor: CCD image sensor (made by SHARP company)
  • Suitable for use with trucks/ caravans/ cars etc. Thanks to this heavy duty CCD crystal clear 12/24-volt applicable reverse camera
  • Clear view day or night
  • Advanced 4 PIN cable. Allowing the monitor to power up the camera no need to connect another power cable to camera*

WHAT'S INCLUDED

  1. MDVR
  2. User manual
  3. Software disc
  4. Key
  5. HDD disk box screw
  6. Warrranty label
  7. AV cable
  8. Power cable
  9. IO alarm cable
  10. 3G/4G antenna
  1. GPS antenna
  2. 1TB HDD (*optional)
  3. 7" LCD Splitscreen Monitor with Removable Sunshade Design
  4. Reversing Camera
  5. Forward View Reversing Camera
  6. 2x 90° Side View Cameras
  7. 1x Power Cord
  8. 1x Remote Control (* Batteries Not Included)
  9. 4x 10M 4Pin Cable

7" Splitscreen MDVR GPS4G Fleet Monitoring Fuel Management

  • Video

*Product on the video may differ from the actual product. Video is displayed to show the importance and use of the product.
