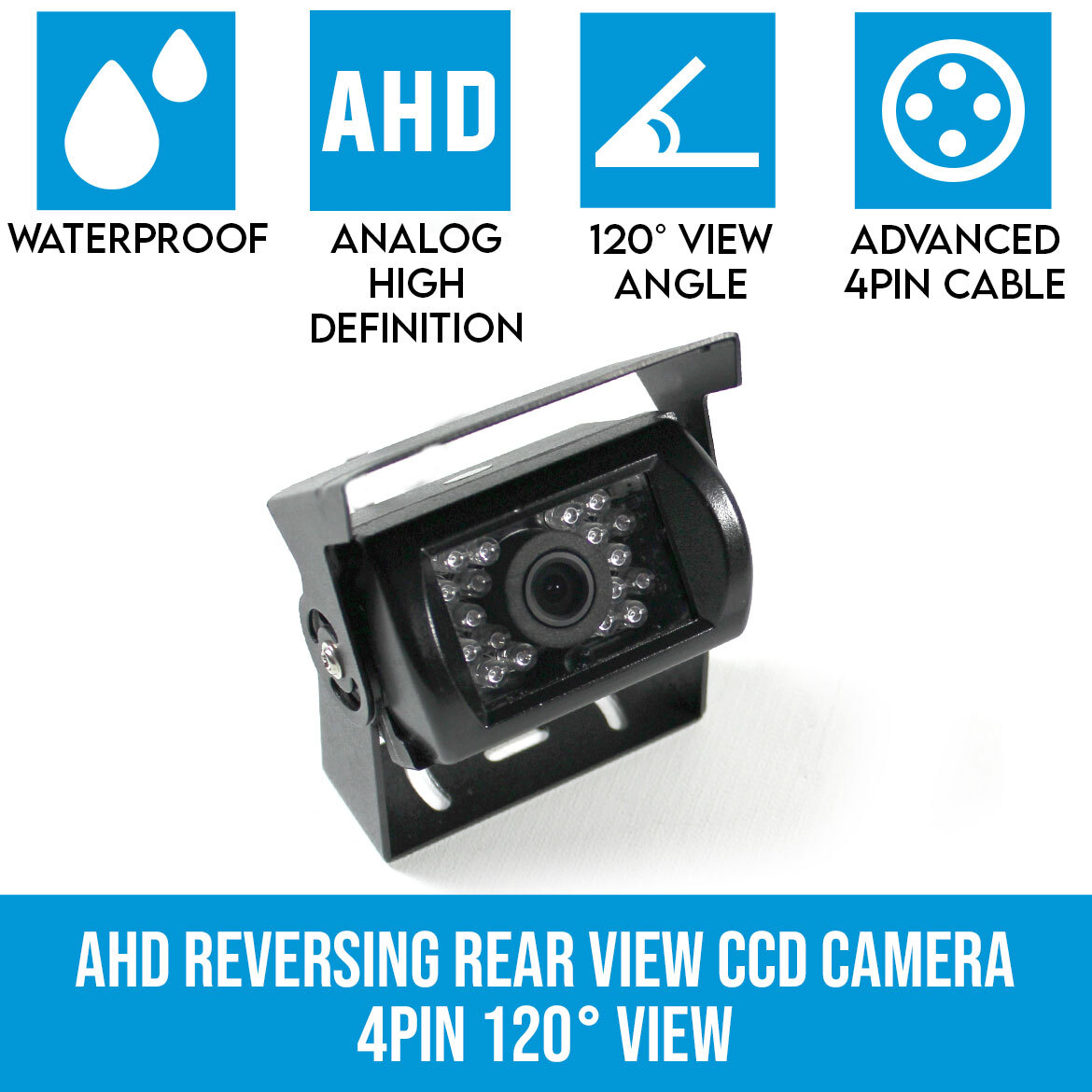

AHD Reversing Rear View CCD Camera 4PIN Night Vision Car Truck Caravan 120° View

SKU: RV4PINAHDMASTER

AHD Reversing Camera Monitor KitAHD Reverse Camera Monitor System Features
Analog High Definition Rear View Camera Monitor

AHD Camera

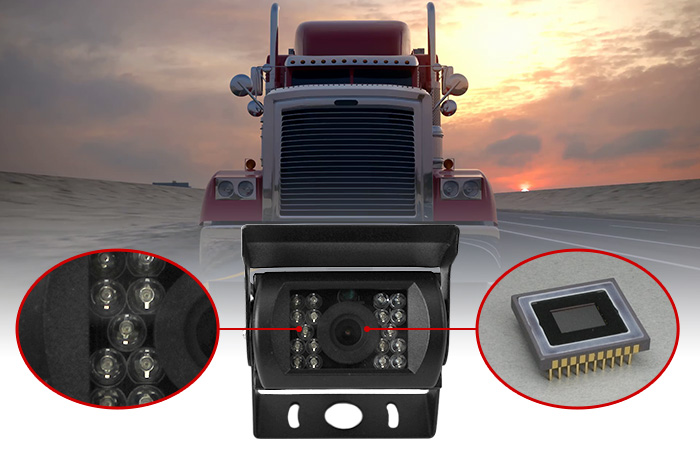

This Heavy Duty AHD Camera features CCD Sensor with 18pcs IR LED lights providing a perfect view when the light is low or even on darkest night (black and white) to guarantee safe driving.

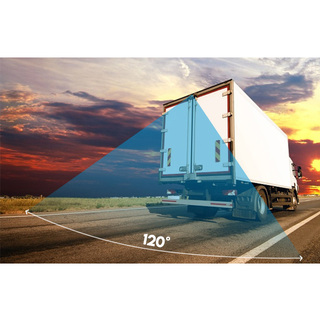

120 Degree Wide Angle Viewing

Camera is equipped with a 120° viewing angle with 6 layered all glass lens perfect for checking unseen blind spots in your vehicles mirrors when reversing, it uses all-glass material.

120 Degree Wide Angle Reverse Camera
Waterproof and Shockproof

Waterproof & Shockproof

IP68 backup camera, completely waterproof and shockproof

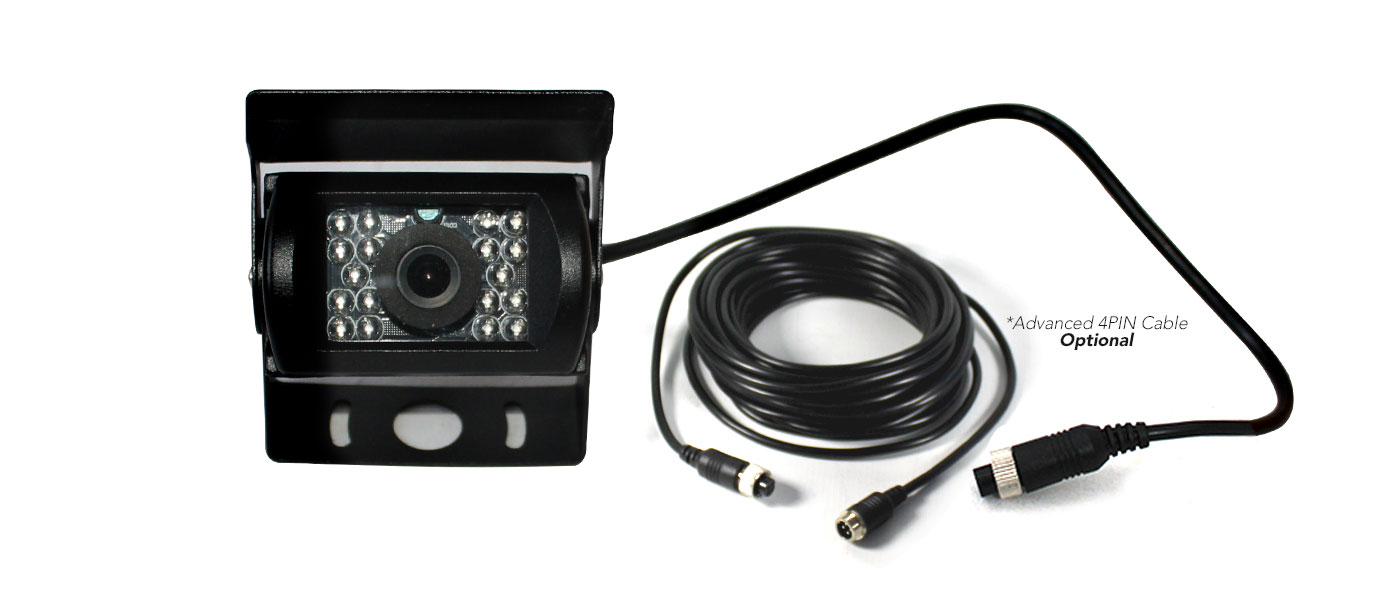

Advanced 4PIN Cable (Optional)

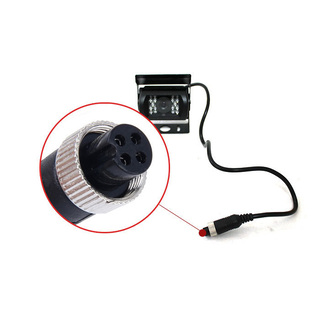

Conveniently and securely install on trucks and trailers using 4 PIN cable to connect the monitor to the camera. One cable solution deals with both power and signal transmission.

Advanace 4PIN Cable
advanced 4PIN cable for reversing camera

Advance 4PIN Cable Choices(OPTIONAL)



  • 5M 4PIN Cable
  • 10M 4PIN Cable
  • 20M 4PIN Cable



MORE INFORMATION

Safety and security not just for drivers but also for pedestrians and people around, that is what a reversing camera. AHD CCD Reverse camera that uses 4PIN cable to transmit HD video from AHD camera to a AHD monitor with anti-interference and non-distorted images.

It has 1.3MP image sensor with infrared night vision that gives you clear images day and night. This heavy duty camera is 100% waterproof that has an IP68 rating. This AHD Camera features CCD Sensor with 18pcs IR LED lights providing a perfect view when the light is low or even on darkest night (black and white) to guarantee safe driving.

You can have a safer driving and you can reduce blind spots. Get this back up camera now.

*This camera is only compatible to our AHD monitor. If you are looking fo and AHD monitor and camera kit, please click here.

PRODUCT HIGHLIGHTS

  • AHD Camera
    • This Heavy Duty AHD Camera features CCD Sensor with 18pcs IR LED lights providing a perfect view when the light is low or even on darkest night (black and white) to guarantee safe driving.
  • 120 Degree Wide Angle Viewing
    • Camera is equipped with a 120° viewing angle with 6 layered all glass lens perfect for checking unseen blind spots in your vehicles mirrors when reversing, it uses all-glass material.
  • Waterproof & shockproof
    • IP68 backup camera, completely waterproof and shockproof
  • Increases Safety
    • It helps to provide safer driving, parking and maneuvering for drivers especially those driving larger vehicles.
    • It is not just for drivers but also for pedestrians and people around
  • Advanced 4PIN Cable (Optional)
    • Conveniently and securely install on trucks and trailers using 2x 10M 4 PIN cable to connect the monitor to the camera. One cable solution deals with both power and signal transmission.

ITEM DESCRIPTION

  • Image sensor: 1/3" 1.3MP CCD Sensor
  • Effective Pixel: PAL 1290(H)*720(V)
  • Illuminance: 0.1 Lux, Infrared night vision
  • CDS night version change: Change to black and white image automatically in the night
  • Horizontal Resolution: 1/3Megapixel/720P
  • Image: Mirror image
  • S/N Ratio: 39db(TYP)69db(MAX)(AGC OFF)
  • Electronic Shutter: Auto 1/25(30)-1/50,000
  • Exposure: Auto*2-*512
  • System: PAL
  • Video Output: CVBS 1.0 vp-p/75 ohms
  • Waterproof Level: IP68
  • Shockproof Level: 4G
  • Power Requirements: DC 12V-24V

Dimension



Reversing Camera Package

WHAT'S INCLUDED

  1. 1X AHD Camera
  2. 4PIN Cable(Optional)

Reversing Camera Package
