Cosmoblaze 10" Osram LED Light Bar Driving 1 Row Flood Spot Combo Beam 4x4 Truck

SKU: CBSRS510

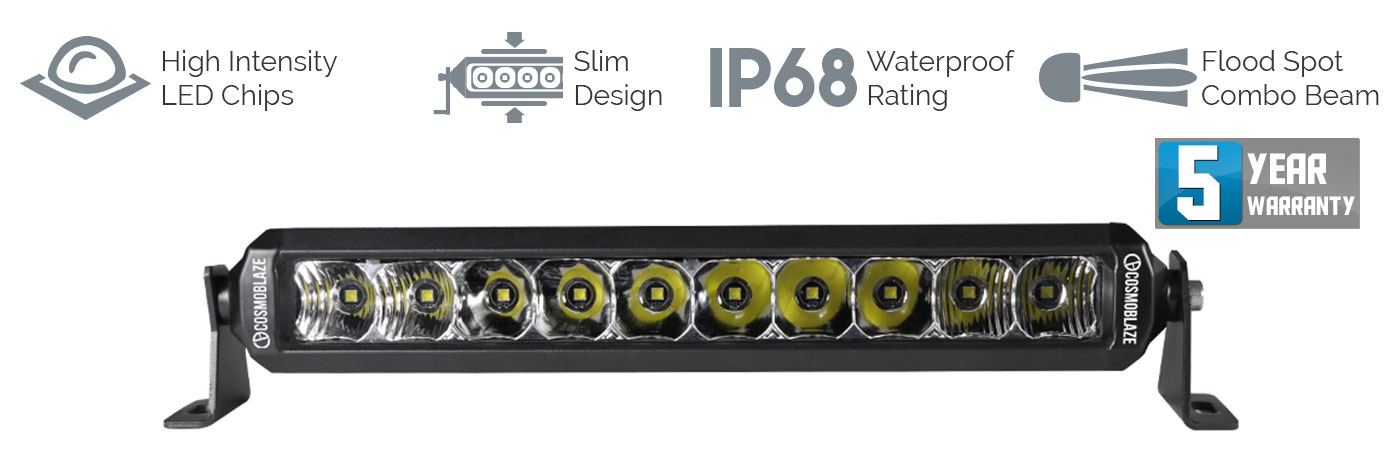

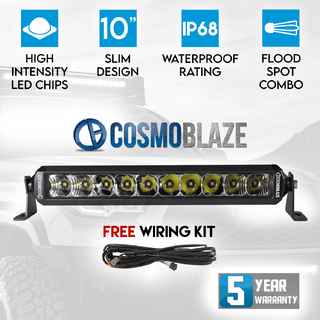

Cosmoblaze 10 inch Osram LED Light Bar
Osram LED Chips

High Intensity Osram LED Chips

  • New Cosmoblaze Light bars comes with Orsam chips, one of the leading LED chip manufacturers in the world. With high intensity Osram LEDs to provide best results. Spot beam pattern for long distance and side Flood pattern for wide viewing
Slim Design 1 Row Light Bar

Slim Design

  • This new Cosmoblaze light bar is designed to bring a large amount of light to fit in a small amount of space. With its slim design with height of just 60.9mm total height with the side brackets attached, you will be able to mount in locations like your front bar and grill whilst maintaining the factory look of your vehicle.
Flood Spot Combo Beam

Flood Spot Combo Beam

  • With high quality engineered flood and spot reflectors it provides denser illumination, further distance and wider coverage. Strong penetrating beam with 500m at 1 LUX and 50m out to the shoulders of the road with flood beam. Advanced optics offer Spot and Flood Combo in the same light. That means the edges and center emit different light beams giving you better overall coverage.
IP68 Waterproof LED Light Bar

IP68 Waterproof

  • This lightbar is waterproof up to 3 meters and proven dust & particle tight. Protects against water ingress, dust & contaminants. shockproof and anti-corrosion in the extreme weather conditions.
Aluminum Housing Light Bar

6063 Extruded Aluminum Housing

  • Provides structural integrity, ensuring that the light bar can perform well even under extreme conditions.
Easy to install LED Light Bar

Easy to Install

  • Comes with side brackets, DT Plug and DT wiring harness
DT Connectors for LED Light

Deutsch® DT Connectors

  • Installing LED lighting has never been easier with Deutsch DT Connectors. Safe and secured connection to protect your led light bar. Lightbar comes pre-wired with Deutsch plugs, meaning that it is fully compatible with the included DT wiring harnesses.
Dupont Painted Light Bar

Dupont Painted

  • This New Cosmoblaze led light bars are powder coated with Dupont paint in a glossy marine black finish to resist UV radiation and even salt water.
LED light Bar Voltage

Wide Operating Voltage

  • This light can run on any voltage from 9 to 36 volts and provides an extremely rugged lighting solution for off-roading.
  • This is also ideal for use in commercial marine environments as well as industrial and manufacturing applications such as machine vision system lighting, heavy equipment illumination, blasting lighting, vehicle lighting and mining operations.
Heat Management LED light

Heat Management

  • This new Cosmoblaze LED light bars utilize an extruded aluminum housing that incorporates an advanced heat radiating fin design which dissipates heat efficiently to produce the maximum amount of power.
Product views driving light bar

Product Views

Military Breather LED light

Military Breather

  • This new Cosmoblaze LED light bar has military grade waterproof breather to prevent moisture building up inside.
1 Row 10 inch LED Light Bar

Product Dimensions

Theoretical Lumen Output 1 Row Light Bar

Theoretical Lumen Output

MORE INFORMATION

Introducing Cosmoblaze NEW 10 inch LED light bar using Osram chips, one of the leading LED chip manufacturer. This light bar can deliver high intensity lights featuring Spot beam pattern for long distance and side Flood pattern for wide viewing.

Installation is easy, it comes with side brackets and Deutsch® DT Connectors that is surely safe and secured to use.

Ip68 waterproof rating and 6063 Extruded Aluminum Housing covers your worry on extreme weather conditions. It protects light bar against water ingress, dust & contaminants.

There's more to know about this Cosmoblaze LED light bar. Let's discover how useful it is for you.

PRODUCT HIGHLIGHTS

  • High Intensity Osram LED Chips
    • New Cosmoblaze Light bars comes with Orsam chips, one of the leading LED chip manufacturers in the world. With high intensity Osram LEDs to provide best results. Spot beam pattern for long distance and side Flood pattern for wide viewing
  • Slim Design
    • This new Cosmoblaze light bar is designed to bring a large amount of light to fit in a small amount of space. With its slim design with height of just 60.9mm total height with the side brackets attached, you will be able to mount in locations like your front bar and grill whilst maintaining the factory look of your vehicle.
  • Flood Spot Combo Beam
    • With high quality engineered flood and spot reflectors it provides denser illumination, further distance and wider coverage. Strong penetrating beam with 400m at 1 LUX and 50m out to the shoulders of the road with flood beam. Advanced optics offer Spot and Flood Combo in the same light. That means the edges and center emit different light beams giving you better overall coverage.
  • IP68 Waterproof
    • This lightbar is waterproof up to 3 meters and proven dust & particle tight. Protects against water ingress, dust & contaminants. shockproof and anti-corrosion in the extreme weather conditions.
  • 6063 Extruded Aluminum Housing
    • Provides structural integrity, ensuring that the light bar can perform well even under extreme conditions.
  • Easy to install
    • Comes with side brackets, DT Plug and DT wiring harness
  • Deutsch® DT Connectors
    • Installing LED lighting has never been easier with Deutsch DT Connectors. Safe and secured connection to protect your led light bar. Lightbar comes pre-wired with Deutsch plugs, meaning that it is fully compatible with the included DT wiring harnesses.
  • Dupont Painted
    • This New Cosmoblaze LED light bars are powder coated with Dupont paint in a glossy marine black finish to resist UV radiation and even salt water.
  • Wide Operating Voltage
    • This light can run on any voltage from 9 to 36 volts and provides an extremely rugged lighting solution for off-roading.
    • This is also ideal for use in commercial marine environments as well as industrial and manufacturing applications such as machine vision system lighting, heavy equipment illumination, blasting lighting, vehicle lighting and mining operations.
  • Heat Management
    • This new Cosmoblaze LED light bars utilize an extruded aluminum housing that incorporates an advanced heat radiating fin design which dissipates heat efficiently to produce the maximum amount of power.
  • Military Breather
    • This new Cosmoblaze LED light bar has military grade waterproof breather to prevent moisture building up inside.

ITEM DESCRIPTION

  • Brand: Cosmoblaze
  • LED : OSRAM® LED Chips
  • LED QTY : 10 pcs
  • Lumens : 6080LM
  • Beam Pattern : Spot and Flood Combo
  • Beam Angle : 10° Spot and 40° Flood
  • Operating Voltage : 9-36V DC
  • Lux Rating : 400 meters @ 1 Lux
  • Size : 10 inches
  • Color Temperature : 6500K
  • Waterproof Rating : IP68
  • Life time : 50,000+ hours
  • Mounting Bracket : Side Brackets

WHAT'S INCLUDED

1. 1x 10" Cosmoblaze LED Light Bar

2. 2x Mounting Brackets

3. 1x DT Wiring Harness

Cosmoblaze 10 inch LED Light Bar 1 Row

  • Video

*Product on the video may differ from the actual product. Video is displayed to show the importance and use of the product.
