Elinz Digital Wireless Reversing Rearview Camera CMOS 800TVL 18 IR LEDs Night Vision Built-in Mic 12V 24V Truck Caravan
Easy to Install~IP69K~Heavy Duty Camera
SKU | RVDWT |
Barcode # | 0686494501584 |
Brand | Elinz |
Wired or Wireless Transmission | Wireless Transmission |
Cable Length | No cable |
Camera Type | CCD Camera |
Camera Viewing Angle | 120 degree |
Shipping Weight | 0.5566kg |
Shipping Width | 0.002m |
Shipping Height | 0.002m |
Shipping Length | 0.002m |
Shipping Cubic | 0.000001000m3 |
CMOS 800TVL Sensor
Provides exceptional day and night image and video quality due to its CMOS Image sensor and 800TVL resolution. Ensures important details are easily spotted when reversing for your safety
Industrial Grade Heavy Duty Camera
Providing you 120° wide field of view which can work constantly for long time With bigger bracket to provide much better angle
Capability constructed of a metal alloy shell to withstand vehicle shock & vibration
18pcs IR LED Night Vision
Camera comes with built-in 18 IR LEDs night vision which automatically turns on when light level is low, helping you view clearly still at night or in bad weather for added safety.
Night vision distance effective range is 30ft.
IP69K Waterproof Camera
IP69K waterproof rating provides the highest protection available. It ensures it's completely dust tight. Able to withstand high temperature and high pressure of water
Easy to Install
- No need for soldering, splicing or complicated wiring due to its wireless feature. Can easily plug the camera to have its power supply
- Power Source (Running Light or Reversing Light)

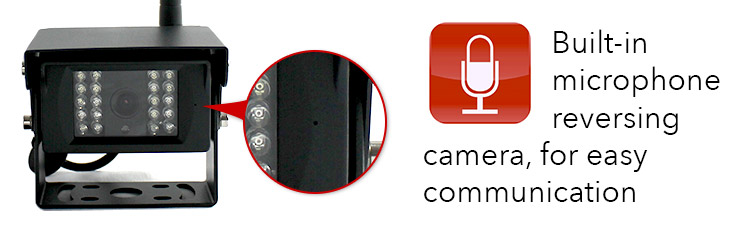

Built-in Microphone
- Can easily hear instructions from someone at the back of the vehicle when reversing
Digital Wireless Connection
- 2.4Ghz digital wireless transmission compared to analogue wireless transmission which is prone to interference.
Works with 12V and 24V Vehicles
- This Reversing Camera is compatible with cars, truck, caravan and trailer
Product Dimensions
Elinz Digital Wireless Reversing Rearview Camera 120° CMOS 800TVL 18 IR LEDs Night Vision Built-in Mic 12V 24V Truck Caravan
This 800TVL Wireless CMOS Reversing Camera has a viewing angle of 120 degree. It is suitable to 12V and 24v vehicles. It is ideal to use on Big Trucks, Forklifters and Trailers as you don’t need to worry about connecting cables to the monitor. This Colour Reverse Camera have 18 IR LEDS to give you clearer image especially at night.
The camera is IP69K waterproof rating that provides the highest protection available. It ensures that camera is completely dust tight which is able to withstand high temperature and high pressure of water. The built-in mic helps you easily hear instructions from someone at the back of the vehicle when reversing.
This camera has 2.4Ghz digital wireless transmission compared to analogue wireless transmission which is prone to interference. This Wireless Reversing Camera is suitable for Elinz M72CH, M92CH, M9 and M7DG Monitors.
PRODUCT HIGHLIGHTS
- 800TVL CMOS Image Sensor
- Provides exceptional day and night image and video quality due to its CMOS Image sensor and 800TVL resolution. Ensures important details are easily spotted when reversing for your safety
- Industrial Grade Heavy Duty Camera
- Providing you 120° wide field of view which can work constantly for long time
- With bigger bracket to provide much better angle
- Capability constructed of a metal alloy shell to withstand vehicle shock & vibration
- 18pcs IR LED Night Vision
- Camera comes with built-in 18 IR LEDs night vision which automatically turns on when light level is low, helping you view clearly still at night or in bad weather for added safety.
- Night vision distance effective range is 30ft.
- IP69K Waterproof Camera
- IP69K waterproof rating provides the highest protection available. It ensures it's completely dust tight. Able to withstand high temperature and high pressure of water
- Easy to Install
- No need for soldering, splicing or complicated wiring due to its wireless feature. Can easily plug the camera to have its power supply
- Built-in Microphone
- Can easily hear instructions from someone at the back of the vehicle when reversing
- Digital Wireless Connection
- 2.4Ghz digital wireless transmission compared to analogue wireless transmission which is prone to interference.
- Compatible with Elinz Reversing Monitors
- This Wireless Reversing Camera is suitable for Elinz M72CH, M92CH, M9 and M7DG Monitors
- Works with 12V and 24V Vehicles
- This Reversing Camera is compatible with cars, truck, caravan and trailer
ITEM DESCRIPTION
- Wireless Working Frequency: 2400 ~ 2483.5MHz
- Image Sensor: 1/3 Color CMOS
- Resolution: 800 TVL
- Pixels: 968(H)*488(V)
- View Angle: 120°
- Min Illumination: 0.01 Lux
- Lens: 3.6 mm
- Video Codec: MPEG4
- Microphone: Yes
- Smart IR-CUT: Day/Night auto switch
- IR distance: 30 ft
- Wateproof Rating: IP69K
- Working voltage: DC12V-24V
- Operating Temperature: -20°C~60°C
- Storage Temperature: -30°C~70°C

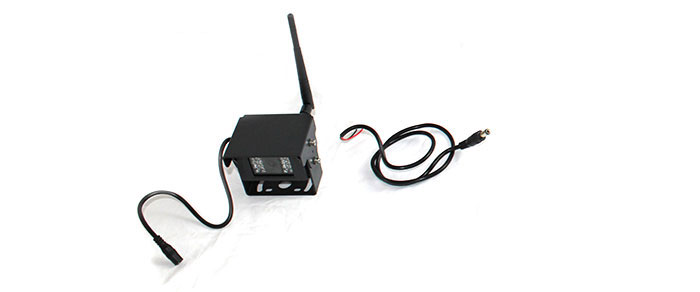

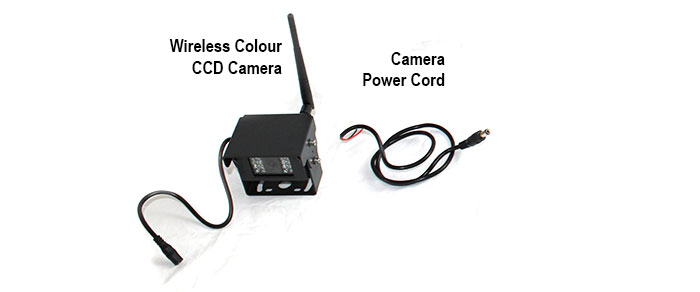

WHAT'S INCLUDED
1. 1x Wireless Colour CMOS Camera
2. 1x Camera Power Cord
