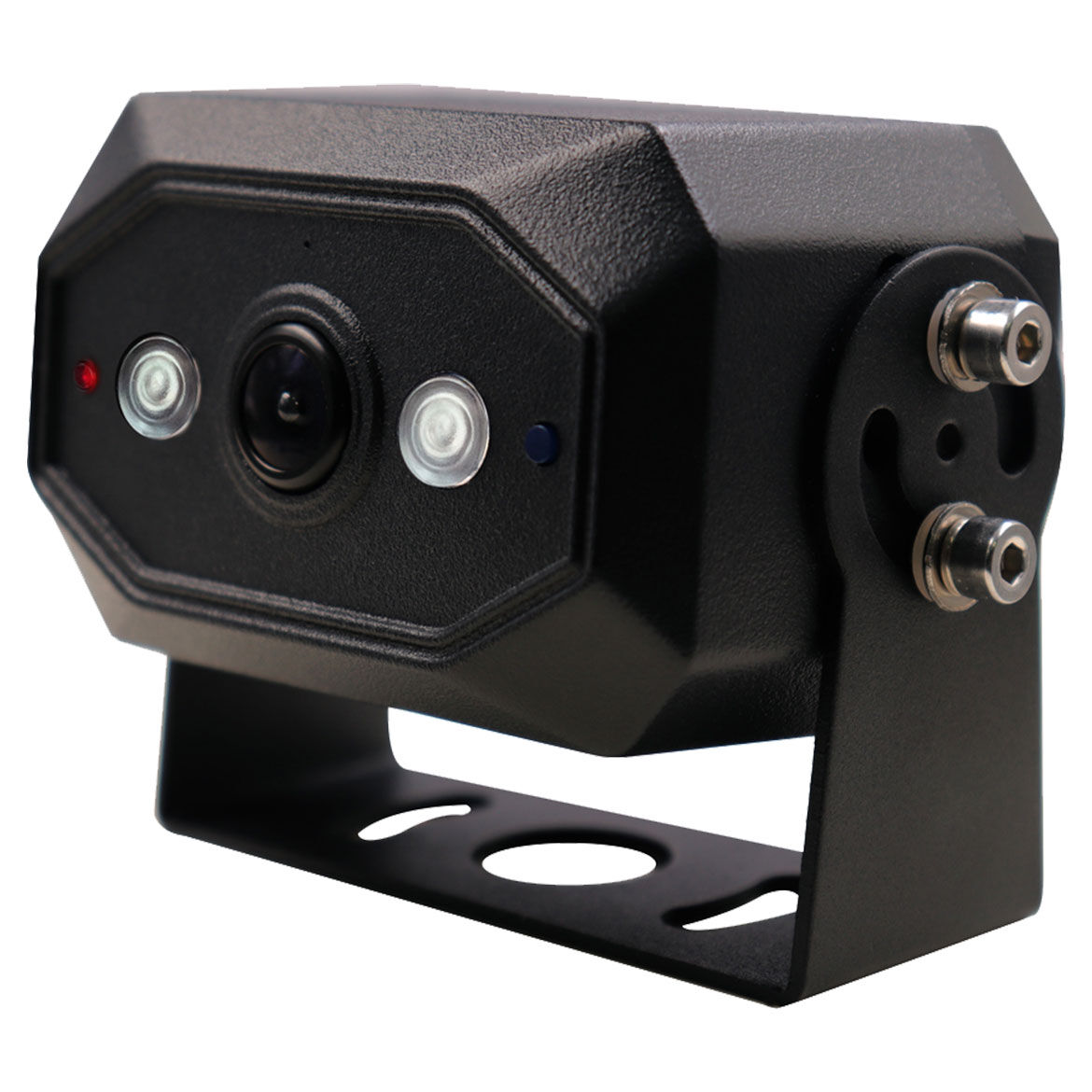

Elinz 1080P AHD Reversing Rear View 4PIN 2pcs IR LED Night Vision Car Truck Caravan CMOS Camera

The Elinz 1080P AHD Reversing Camera is a high-performance solution designed to enhance vehicle safety and visibility. Equipped with a Sony Starvis sensor, 1080P Full HD resolution, and infrared night vision, it delivers clear, detailed images even in low-light conditions. With an IP68 waterproof rating and a durable 4PIN connector, it’s perfect for cars, trucks, and caravans.

PRODUCT HIGHLIGHTS

• AHD Camera
  • This new AHD Analog High Definition reversing camera has a higher image resolution than the standard CVBS cameras in the market today.
• 1080P Full HD
  • This camera offers you a more vivid colour and a clearer view of what's behind your vehicle in a real 1080P Full High Definition.
• Sony Starvis Sensor
  • The Sony Starvis sensor can capture clear and detailed footage in low-light conditions and has higher sensitivity to recognize colours to enhance drivers' visibility at night.
• Perfect Field of View
  • With a 1/2.8 sensor that provides you with a 120° field of view, reducing blind spots for reversing and a more realistic viewing angle. It's perfect for monitoring and reversing as it reduces distortions and fisheye effects, unlike other camera brands
• Infrared Night vision
  • The night vision effect is enhanced with 2pcs big IR LEDs to help you see in the dark by using infrared technology.
• 4PIN Connector
  • The 4-pin aviation connector is considered to be one of the best connectors for reversing cameras. This robust and waterproof connector helps prevent accidental or unintended disconnection.
• IP68 Waterproof
  • This camera is completely protected against dust and can withstand fresh water immersion of up to 1 meter.

ITEM DESCRIPTION

• Technology: AHD
• Image sensor: Sony Starvis 1/2.8" 1080P CMOS Sensor
• TV system: PAL/NTSC
• Effective Pixel: 1920(H)*1080(V)
• Pixels Size: 2.8μm*2.8μm
• Resolution: 2.0 Mega Pixels
• Minimum illumination: 0.01Lux/F1.8 (0 Lux With LED)
• Night Vision: IR
• Image: Mirror image
• View Angle: 120°
• Waterproof Level: IP68
• Working Voltage: DC12V
• Current Consumption: <150mA
• Waterproof Rating: IP68
• Gamma Factor: 0.45
• Vertical Sync Frequency: 50Hz / 60Hz
• Horizontal Sync Frequency: 15.625KHz / 15.734KHz
• Internal Sync Definition: 1000 TVL
• Connector: 4PIN
• Compatible Monitors: M7AHD, M500AHD, M525AHD, M725AHD, M1025AHD

WHAT'S INCLUDED

1. 1x Camera
2. 1x Bracket
3. 1x Screws
