4K 3CH Dash Camera Supercapacitor

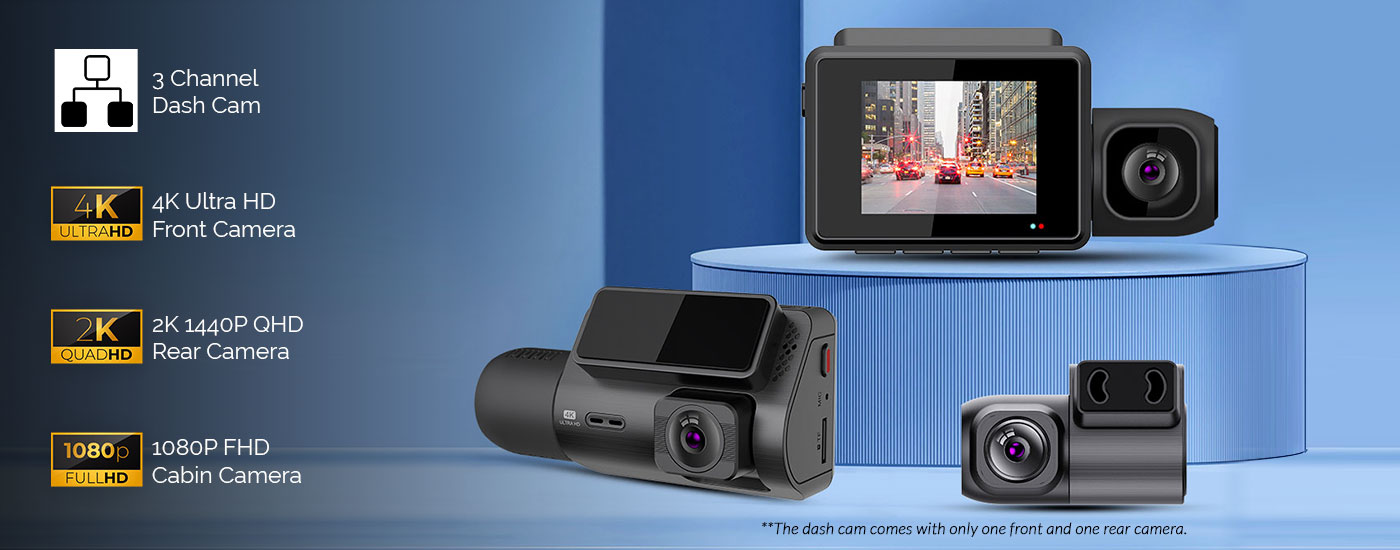

3 Channel Dash Cam

3 Channel Dash Cam

This DCMAXX3CH is a 3-channel dash cam that offers a 170° wide-angle front, 120° inside camera, and 140° rear camera, it can simultaneously monitor the front, rear, and interior of your vehicle. This helps you during unexpected circumstances like collisions to present as evidence.



4K Ultra HD Front Camera

4K Ultra HD Front Camera

Equipped with 4K Front Camera that delivers an exceptional 4K 3840*2160P @24fps Ultra High Definition video quality to capture key details like road signs, traffic events, and license plates.

2K 1440P QHD Rear Camera

2K 1440P QHD Rear Camera

Rear-end collisions are the most common type of car accident in Australia and with a 2K 2560*1440P @30fps rear camera this ensures precise license plate recognition, even at high speed.



1080P FHD Cabin Camera

1080P FHD Cabin Camera

A perfect choice for Uber, GoCatch, Ola, DiDi, Premier Cabs, Taxi, commercial fleet drivers, and families so you never miss a moment and stay protected.

Dual Sony Starvis Sensors

Dual Sony Starvis Sensors

Both front and rear camera uses a Sony Starvis IMX335 sensor that helps to capture comparatively clearer footage even in low light conditions.



Dash Cam High-Quality Novatek Chipset

High-Quality Novatek Chipset

It is equipped with a high-quality Novatek 96670 Chipset which integrates cutting-edge technology to provide an excellent overall performance.

WiFi DashCam

WiFi

Access your dash cam footage faster without removing the memory card. Quickly view and share your driving experiences in real-time with friends and insurance companies via the RoadCam app.



Time-lapse Parking Mode

Time-lapse Parking Mode

With time-lapse parking mode, your dash cam will take static photos at a lower frame rate (1fps/2fps/4fps) to create a video montage while the car is parked. Providing you a 24/7 surveillance for car security while you are away. To enable this function it requires hardwiring to the vehicle's fuse box, a hardwire kit has to be purchased separately. Purchase here



Parking Monitor Mode

Parking Monitor Mode

With parking monitor mode, your dash cam will go into a state of “hibernation” while the car is parked and the engine is not running. Once the impact is detected, it will automatically record a 1-minute clip for the front, cabin, and rear camera even when the car is unattended. To enable this function it requires hardwiring to the vehicle's fuse box, a hardwire kit has to be purchased separately. Purchase here

Enhanced Night Vision

Enhanced Night Vision

This dash cam adopts an excellent optical lens with an ultra-large F1.8 aperture 7-layer glass lens for the front camera, and an F1.7 aperture 6-layer glass lens for the rear camera and is equipped with HDR/WDR technology to capture important details clearly under low light conditions.



External GPS

External GPS

With external GPS it helps your dash cam to get a faster and stronger signal than the built-in ones. Accurately track all the information such as location, speed, time GPS coordinates, and driving track using GX player for PC. (exe file software is saved in the root directory of the microSD card.)



G-Sensor

G-Sensor

When the G-Sensor detects shake/collision, the dash cam will automatically save the current video file and lock it preventing it from being overwritten.

Supports Up-To 256GB

Supports Up-To 256GB

This dash camera supports up to 256GB MicroSD Card, U3 (UHS Speed Class 3) microSD card is required since this is a 4K dash cam. U1 or other slower UHS class will not be recognized by the unit due to their writing speed.



Supercapacitor Dash Camera

Supercapacitor

Built to withstand Australian weather conditions from - 10°C~ 60°C. Effectively eliminating the risks of overheating, and explosion, unlike other dash cameras with traditional lithium batteries

Seamless Loop Recording

Seamless Loop Recording

You can adjust the length of the clip time in your camera's settings in increments from 1, 3, or 5 minutes. With loop recording, the camera will automatically overwrite the oldest file when the card is full, so it is unnecessary to delete it manually.



Blind Spot Detection System Dimensions & Wiring Diagram

Product Dimensions & Labels



Elinz 3 Channel Dash Cam 4K+1080P+2K Three Way WiFi GPS Night Vision Supercapacitor Sony Starvis Car DVR

Elinz 3 Channel Dash Cam: the ultimate in-vehicle surveillance solution! This powerful device captures every angle of your journey with its 4K front camera, 2K rear camera, and 1080P interior camera, providing comprehensive coverage for enhanced security and peace of mind. Equipped with cutting-edge Sony Starvis sensors and a high-quality Novatek chipset, this dash cam ensures superior video quality, even in low-light conditions. With features like WiFi connectivity, GPS tracking, night vision, parking monitor mode, and support for up to 256GB microSD cards, the Elinz 3 Channel Dash Cam is your reliable companion on the road.

Product Comparison Table



PRODUCT HIGHLIGHTS

  • 3 Channel Dash Cam
    • This DCMAXX3CH is a 3-channel dash cam that offers a 170° wide-angle front, 120° inside camera, and 140° rear camera, it can simultaneously monitor the front, rear, and interior of your vehicle. This helps you during unexpected circumstances like collisions to present as evidence.
  • 4K Ultra HD Front Camera
    • Equipped with 4K Front Camera that delivers an exceptional 4K 3840*2160P @24fps Ultra High Definition video quality to capture key details like road signs, traffic events, and license plates.
  • 2K 1440P QHD Rear Camera
    • Rear-end collisions are the most common type of car accident in Australia and with a 2K 2560*1440P @30fps rear camera this ensures precise license plate recognition, even at high speed.
  • 1080P FHD Cabin Camera
    • A perfect choice for Uber, GoCatch, Ola, DiDi, Premier Cabs, Taxi, commercial fleet drivers, and families so you never miss a moment and stay protected.
  • Dual Sony Starvis Sensors
    • Both front and rear camera uses a Sony Starvis IMX335 sensor that helps to capture comparatively clearer footage even in low light conditions.
  • High-Quality Novatek Chipset
    • It is equipped with a high-quality Novatek 96670 Chipset which integrates cutting-edge technology to provide an excellent overall performance.
  • WiFi
    • Access your dash cam footage faster without removing the memory card. Quickly view and share your driving experiences in real-time with friends and insurance companies via the RoadCam app.
  • Parking Monitor Mode
    • With parking monitor mode, your dash cam will go into a state of “hibernation” while the car is parked and the engine is not running. Once the impact is detected, it will automatically record a 1-minute clip for the front, cabin, and rear camera even when the car is unattended. To enable this function it requires hardwiring to the vehicle's fuse box, a hardwire kit has to be purchased separately.
  • Time-lapse Parking Mode
    • With time-lapse parking mode, your dash cam will take static photos at a lower frame rate (1fps/2fps/4fps) to create a video montage while the car is parked. Providing you a 24/7 surveillance for car security while you are away. To enable this function it requires hardwiring to the vehicle's fuse box, a hardwire kit has to be purchased separately.
  • External GPS
    • With external GPS it helps your dash cam to get a faster and stronger signal than the built-in ones. Accurately track all the information such as location, speed, time GPS coordinates, and driving track using GX player for PC. (exe file software is saved in the root directory of the microSD card.)
  • Enhanced Night Vision
    • This dash cam adopts an excellent optical lens with an ultra-large F1.8 aperture 7-layer glass lens for the front camera, and an F1.7 aperture 6-layer glass lens for the rear camera and is equipped with HDR/WDR technology to capture important details clearly under low light conditions.
  • G-Sensor
    • When the G-Sensor detects shake/collision, the dash cam will automatically save the current video file and lock it preventing it from being overwritten.
  • Supports Up-To 256GB
    • This dash camera supports up to 256GB MicroSD Card, U3 (UHS Speed Class 3) microSD card is required since this is a 4K dash cam. U1 or other slower UHS class will not be recognized by the unit due to their writing speed.
  • Supercapacitor
    • Built to withstand Australian weather conditions from - 10°C~ 60°C. Effectively eliminating the risks of overheating, and explosion, unlike other dash cameras with traditional lithium batteries.
  • Seamless Loop Recording
    • You can adjust the length of the clip time in your camera's settings in increments from 1, 3, or 5 minutes. With loop recording, the camera will automatically overwrite the oldest file when the card is full, so it is unnecessary to delete it manually.

ITEM DESCRIPTION

  • Screen Size: 2.0 Inch 240*320 IPS Screen
  • Chipset: Novatek 96670
  • Aperture: F1.8 (Front) F1.7 (Rear)
  • Resolution:
  • Front Camera: 4K 3840*2160P @24fps
  • Inside Camera: FHD 1920*1080P @24fps
  • Rear Camera: 2K 2560*1440P @30fps
  • G-Sensor: Support
  • Loop Recording: Support
  • Parking Mode: Support
  • Time-lapse Recording: Support
  • Auto On: Support
  • Storage: Supports Up-To 256GB UHS Speed Class 3 microSD Card.
  • Connectivity: WiFi
  • GPS: External
  • Audio: Built-in microphone
  • Video Code: H.265 MP4
  • Power Interface: Mini USB
  • Operating Voltage: DC 12~24V
  • Power Supply: Power Adapter Input DC 12~24V, Output DC 5V=2000mA



3CH Dash Cam, Rear  Camera

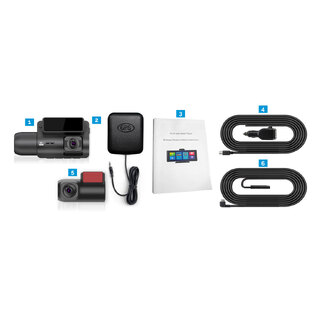

WHAT'S INCLUDED

1. 1x Dash Cam

2. 1x External GPS Module

3. 1x User Manual

4. 1x 12V Power Adapter

5. 1x Rear Camera

6. 1x Rear Camera Cable (6.5 metres)
