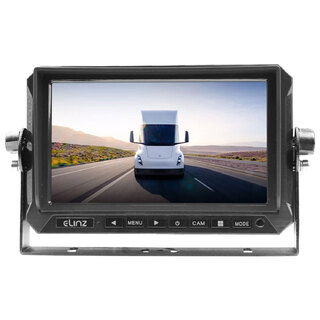

Elinz 7" AHD Monitor Wired 4PIN 3 Channel HD Video Inputs Single View 12V 24V 1024*600 Dashboard Mount

The Elinz 7" AHD Monitor delivers superior video quality and reliability, designed to enhance your driving experience. Featuring a high-definition 1024*600 LCD display, this monitor provides crystal-clear visuals for cars, SUVs, RVs, utes, and trucks. Supporting up to three AHD cameras, it ensures optimal safety with real-time views of your surroundings.

PRODUCT HIGHLIGHTS

• AHD (Analog High Definition)
  • AHD Analog High Definition monitors offer a higher resolution and quality video footage than standard analog monitors.
• 7" LCD Display
  • This 7" AHD Monitor offers 1024*600 screen resolution, perfect for enhancing visibility on Cars, SUVs, RVs, Utes, and Trucks providing real-time images so you can have a clear view of what's behind your vehicle.
• 3CH Single View
  • Supports up to three AHD cameras.
  • Compatible Cameras: RV4PINAHD, RV4PINAHDFWR, RV64PINAHD, RVBALL4PINAHD, RV4PIN2LEDAHD, RV4PIN4LEDAHD, RV4PIN8LEDAHD, RV4PIN12LEDAHD.
• Detachable Sunshade Design
  • With a detachable sunshade or sun visor to keep the sun off the monitor and avoid sunlight to glare on the image or video display. It gives you a clearer vision on the monitor during daytime. You can easily detach the sunshade if desired.
• Guidelines On/Off
  • The monitor has built-in parking guidelines to make it easier and safer for you when reversing. Guidelines can be turned ON/OFF.
• DC 12-24V Power Source
  • Compatible with most vehicles with a power input range of DC12-24V. The monitor supplies DC12V power to the cameras.
• U Shape Bracket
  • This monitor is equipped with a U bracket that allows you to tilt or rotate the monitor on the desired position to have a better view of the displayed image. With this type of mount, this monitor can be mounted on the dashboard or roof of a truck/caravan/car or anywhere suitable.

ITEM DESCRIPTION

• Screen Size: 7 inch
• Monitor Type: AHD
• Display Technology: LCD
• Screen Resolution: 1024*600
• Video Input: 720P/1080P
• Video Channels: 3CH
• Connection Type: 4PIN
• Power Consumption: <5W
• Operating Temperature: -30~ +70 ºC
• Input Voltage: DC12V-24V
• Output Voltage: DC12V
• Compatible Cameras: RV4PINAHD, RV4PINAHDFWR, RV64PINAHD, RVBALL4PINAHD, RV4PIN2LEDAHD, RV4PIN4LEDAHD, RV4PIN8LEDAHD, RV4PIN12LEDAHD

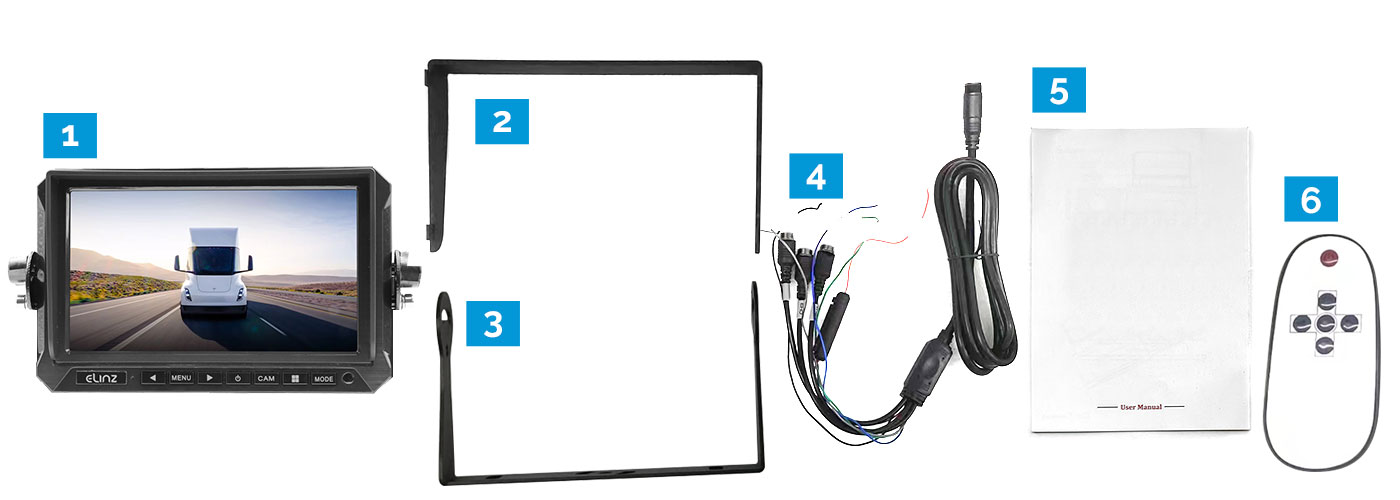

WHAT'S INCLUDED

1. 1x Monitor
2. 1x Sunshade
3. 1x U Bracket
4. 1x Power Cord
5. 1x User Manual
6. 1x Remote (* No Batteries included)
