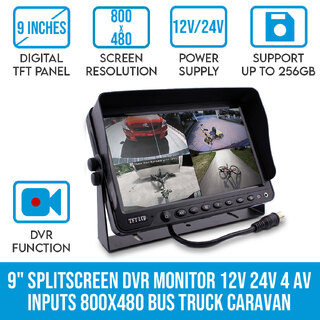

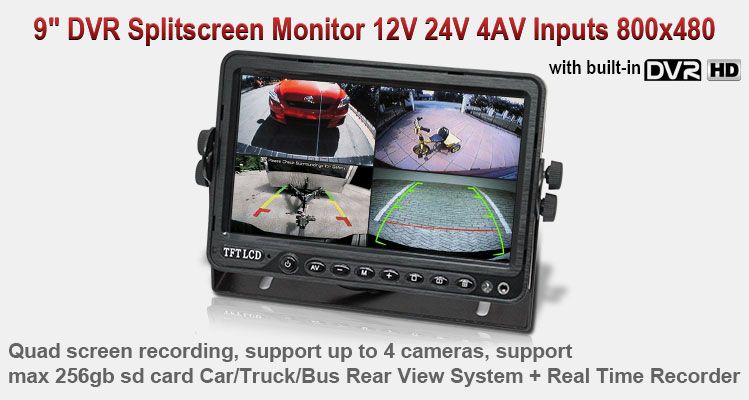

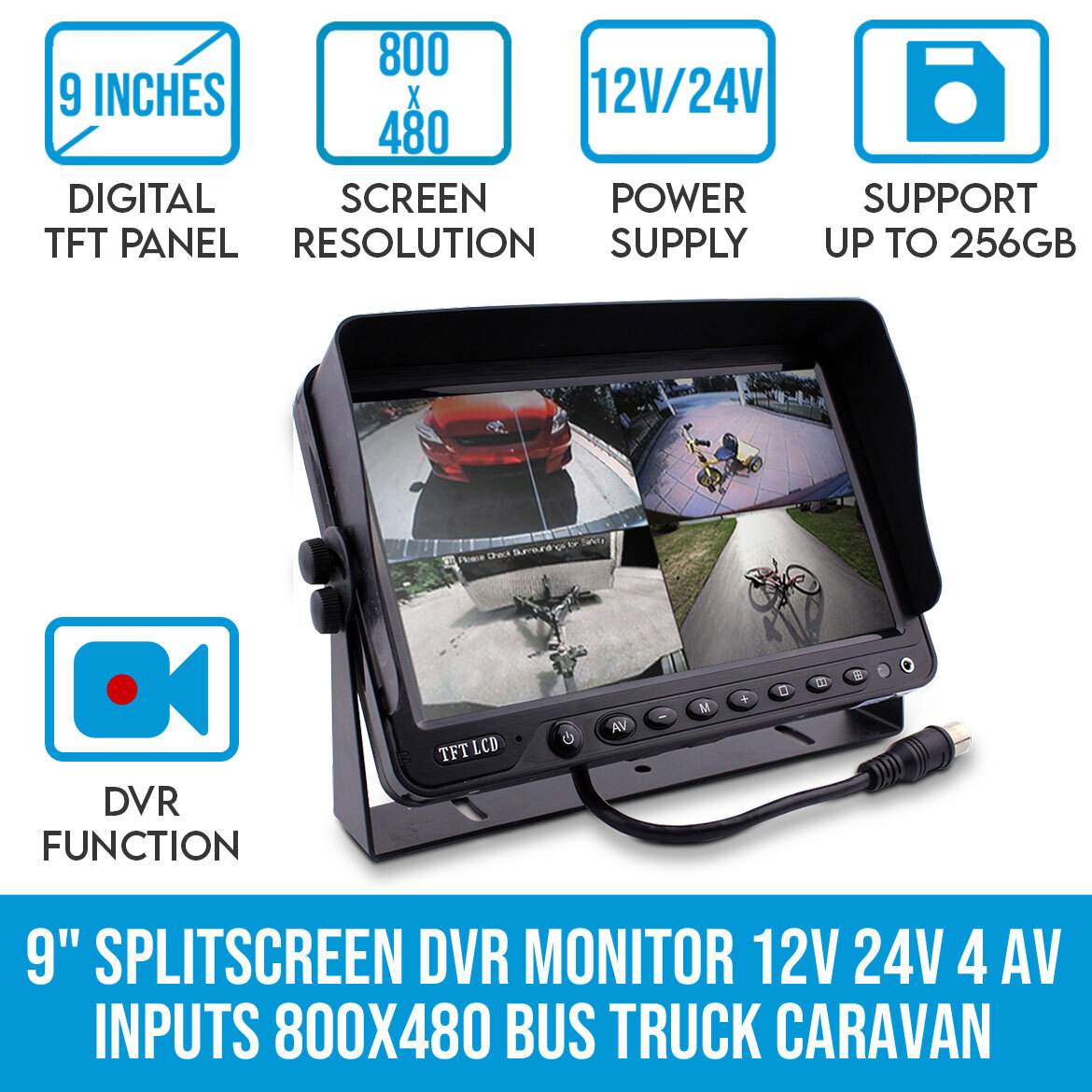

9" Splitscreen DVR Monitor 12V 24V 4 AV Inputs 800x480 Bus Truck Caravan

SKU: DVR9N

9 inch DVR 4CH Reversing Camera Kit

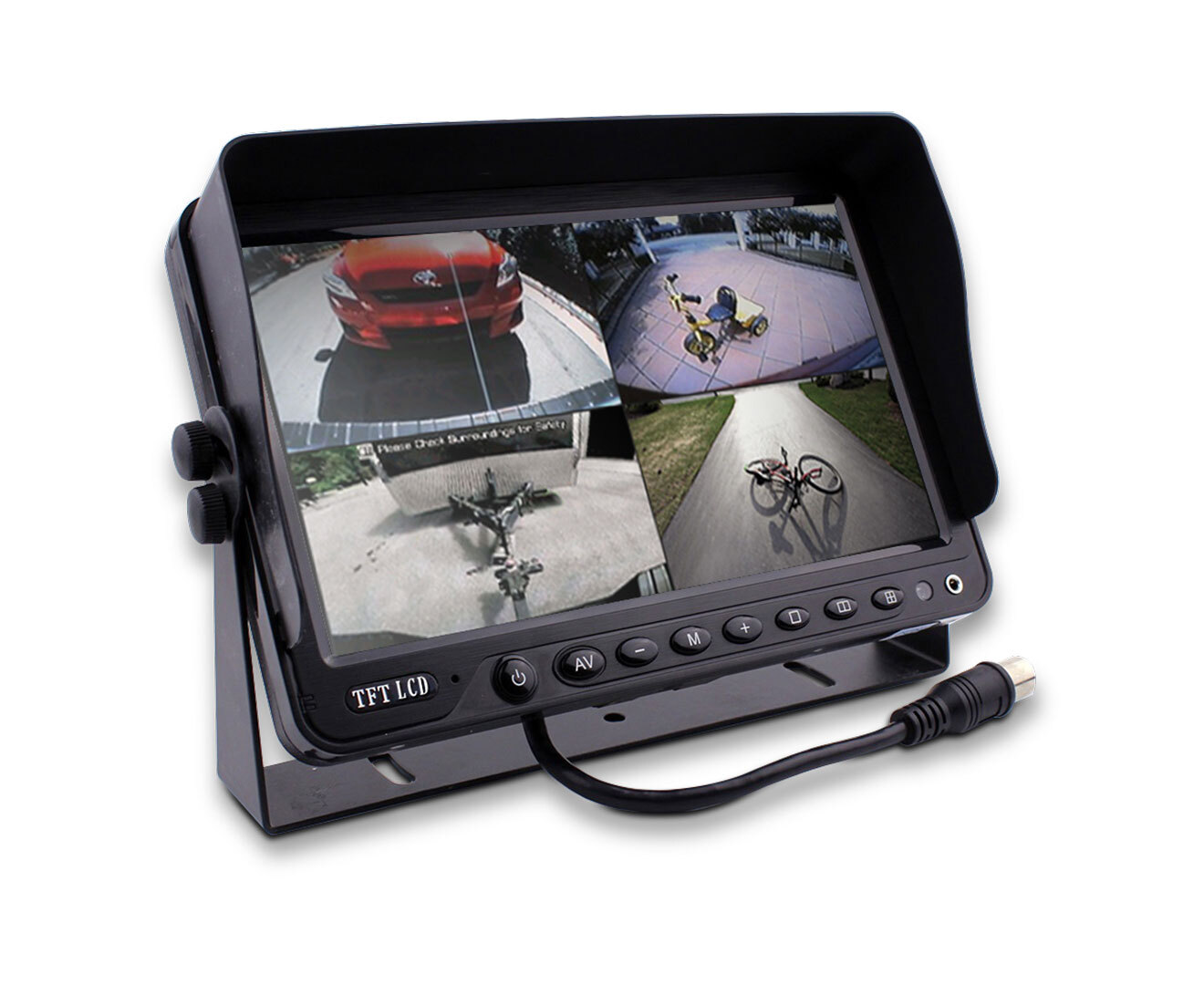

9 Inch Quadscreen Digital TFT Panel Monitor

9 Inch Quadscreen Digital TFT Panel

  • 9 inch quadscreen digital panel with resolution 800*R.G.B*480. Monitor has 4 Channels that can simultaneously record live full time.
DVR 4CH Monitor Real Time Recording

Real Time Recording

  • It allows you to record real time and can see objects on their original places or position.

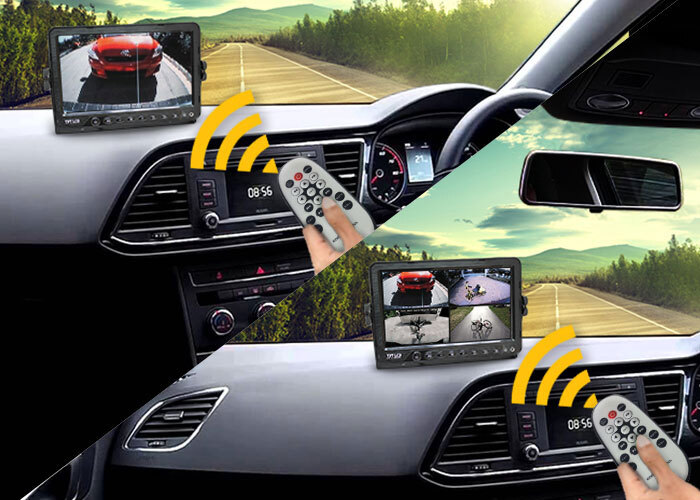

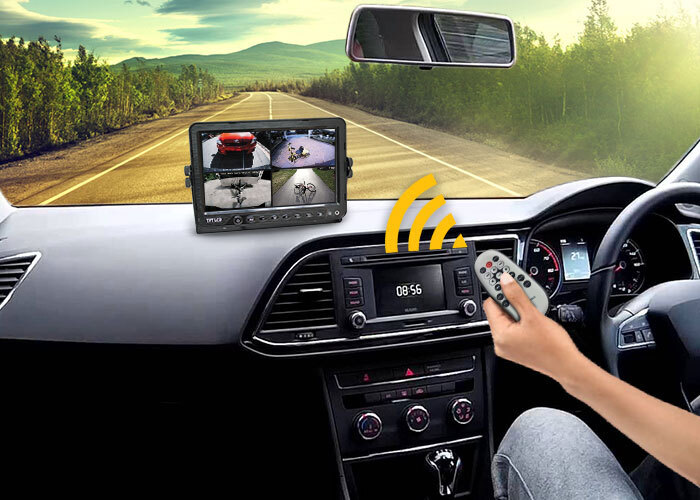

  • You may easily control DVR using the remote control.
4 Input 1 Output Reverse Camera Monitor

3 Video Input + 1 Audio Video Input

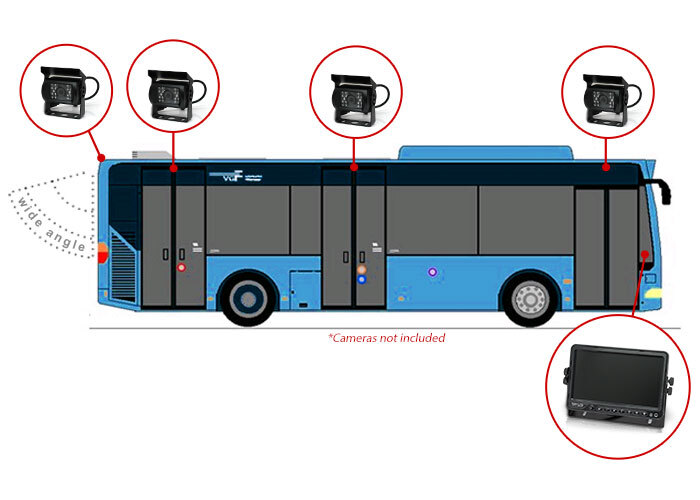

  • V1/V2/V3/V4 switching - Can be connected up to 4 cameras, cameras can be powered up by the monitor, no extra power source required.
  • Reversing camera image can show up automatically on the screen when reversing gear is induced by connecting the trigger wire to the reversing light.
  • All cameras can be shown on the screen at all times when driving, perfect for truck or caravan that need to monitor the rearview all the time.
  • Has only 1 audio video input, it should be plugged to Ch1 for audio video input to work
Local Playback DVR Monitor

Local Playback

  • Locally playback in channel 1 or 4 channels

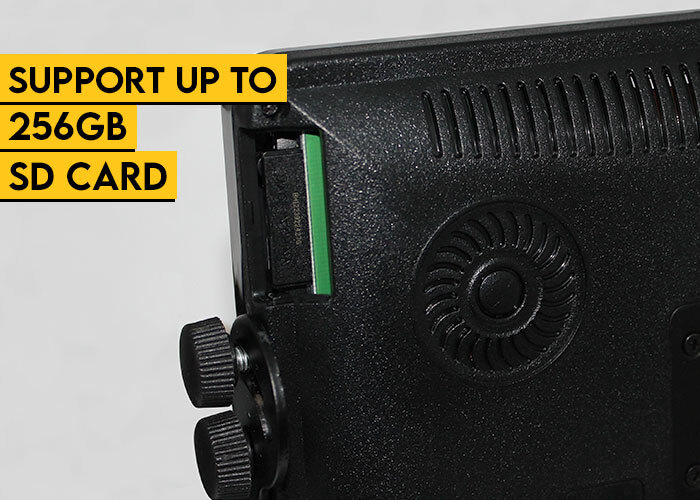

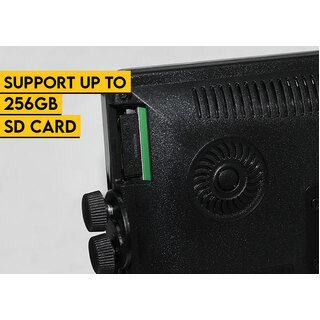

SD Card Slot

Save Recordings in SD Card

  • Camera recordings from the 1 Audio Video input are to be saved in SD card and cannot be played on the monitor.
  • It can support up to 256GB SD card. (SD card not included)

    Note: Monitor do not have built-in speakers
Monitor Bracket Screw Lock

Bracket Screw Lock

  • With the bracket screw lock, it can hold the monitor in placed
Monitor Rotational Angle Adjustment

Rotational Angle Adjustment

  • You can adjust monitor view depending on your preference
Remote Control

Remote

  • * No Batteries included
Monitor Button Labels

Button Panel Labels

Reversing Camera and Monitor Wiring Diagram

Wiring Diagram

Monitor Image Modes

Image Modes

Menu Operation Instruction

Menu Operation Instruction

Product Dimensions

Product Dimensions



MORE INFORMATION

Managing a fleet service or trucking business can be challenging especially if you don't have the right equipment installed in your vehicles. You don't really have to spend on many different machines and other unnecessary technological innovations. Focus on what your trucks and drivers will need which is a reversing camera kit to ensure their safety. In addition to this, your trucks will have a guaranteed cost efficiency that will help you monitor their daily activities in order to effectively help your drivers get to their destinations on time.

This is one of the products we are most proud of. Featuring V1/V2/V3/V4 switching, you can connect this DVR monitor to up to 4 cameras. The better news is that you need no extra power source for it to work efficiently. With this 9-inch monitor, the reverse camera images and videos automatically appear when the reversing gear gets induced by connecting its trigger wire to the reversing light. All cameras can be displayed on the screen at all times while you drive. This is a perfect must-have for our caravan or truck that needs monitoring in the rear view all the time.

*This listing is for Monitor only. Reversing cameras, SD card and cables are sold separately.

PRODUCT HIGHLIGHTS

  • 9 Inch Quadscreen Digital TFT Panel
    • 9 inch quadscreen digital panel with resolution 800*R.G.B*480. Monitor has 4 Channels that can simultaneously record live full time.
  • Real Time Recording
    • It allows you to ecord real time and can see objects on their original places or position
    • You may easily control DVR using the remote control.
  • 3 Video Input + 1 Audio Video Input
    • V1/V2/V3/V4 switching - Can be connected up to 4 cameras, cameras can be powered up by the monitor, no extra power source required.
    • Reversing camera image can show up automatically on the screen when reversing gear is induced by connecting the trigger wire to the reversing light.
    • All cameras can be shown on the screen at all times when driving, perfect for truck or caravan that need to monitor the rearview all the time.
    • Has only 1 audio video input, it should be plugged to Ch1 for audio video input to work
  • Local Playback
    • Locally playback in channel 1 or 4 channels.
  • Save Recordings in SD Card
    • Camera recordings from the 1 Audio Video input are to be saved in SD card and cannot be played on the monitor.
    • It can support up to 256GB SD card. (SD card not included)

      Note: Monitor do not have built-in speakers
  • Bracket Screw Lock
    • With the bracket screw lock, it can hold the monitor in placed.
  • Rotational Angle Adjustment
    • You can adjust monitor view depending on your preference.

ITEM DESCRIPTION

  • 9 inch digital TFT panel
  • Aspect ratio:16:9 image
  • Resolution:800*R.G.B*480
  • Monitor controlled by buttons on panel
  • DVR controlled by the remote
  • 4 Channels simultaneously to full time live record
  • System: PAL & NTSC Auto-switching
  • Video decode H.264
  • Audio decode ADPCM
  • Recording by manually: time setting, alarm and moving detect
  • Video search: time retrieval, fact retrieval, channel retrieval
  • 3 Video Input + 1 Audio Video Input
  • Full image/4 images adjustable
  • Picture adjust with single and quad pictures
  • Recording saved to SD card (support up to max 256gb sd card, sd card not included, to be purchased separately)
  • Recording speed PAL:25 FPS NTSC:30 FPS
  • Local playback in channel 1 or 4 channels
  • Alarm in:4 switching value (Optional)
  • Interface for saving:1 SD card slot
  • One way ignition signal
  • 8V/35V power supply

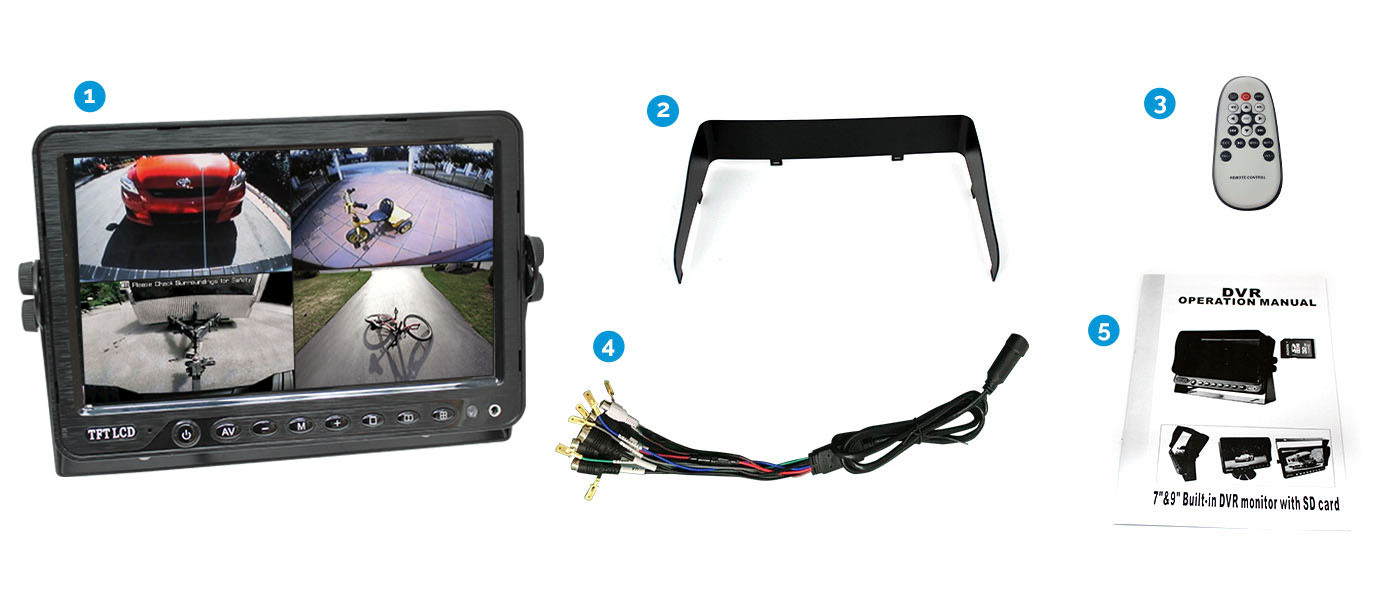

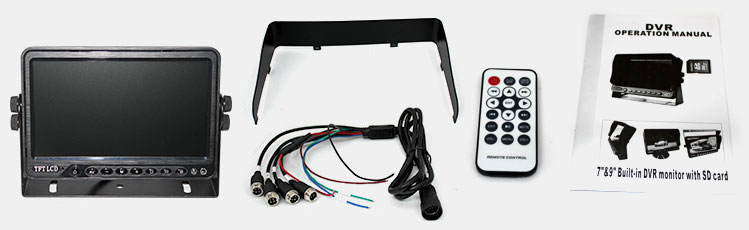

WHAT'S INCLUDED

1. 1x 9" Quadscreen Digital Monitor

2. 1x Sun Shade

3. 1x Remote (* No Batteries included)

4. 1x Power Cable

5. 1x User Manual

9 inch DVR monitor with reversing camera and 4PIN Cable
