Elinz Caravan Two Camera Reversing 4PIN CCD Kit System 7" Monitor HD 12V/24V Black

SKU: M7SRVDOMEBLK10-RVSMA4PIN

Caravan Two Camera 4PIN System Trailer cable 7 inch Monitor Kit
7-hd-monitor-M7SRVDOMBLK-RVSMA4PIN-CBLTRA

7 Inch HD Monitor

  • 800x480 Digital Screen, Crystal Clear Image
  • This monitor can be used with Trucks / Caravans / Cars
  • Rearview image can also be shown on screen at all times
2 AV Inputs

2 AV Inputs

  • It can be connected up to 2 reversing cameras
  • Compatible to 12V & 24V Vehicles
Suitable for Use with Trucks/Caravans/Cars etc.

Suitable for Use with Trucks/Caravans/Cars etc.

Image Display Can Be Rotated

Image Display Can Be Rotated

  • Up, down, left and right

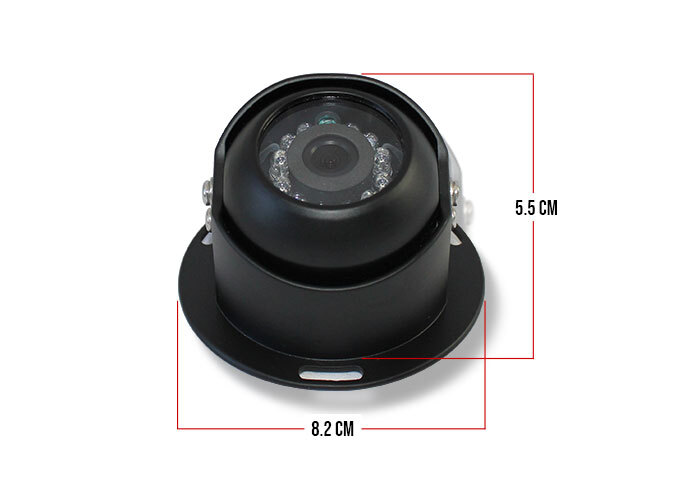

Heavy Duty 600TVL 4PIN Eyeball Reversing Camera

Heavy Duty 600TVL 4PIN Eyeball Reversing Camera

  • Powerful 12 LEDs for night vision
  • Colour: Black
  • 120 degree wide view angle
  • Waterproof
  • CCD image sensor made by Sharp company
Mini CMOS 4PIN Camera

Mini CMOS 4PIN Camera

  • 150 degree wide angle view, Sharp lens
  • Waterproof & protection against dust
4PIN Cables Included

4PIN Cables Included

  • It comes with 1x 5 meters and 2x 10 meters 4PIN connecting cables
Metal Plug Connection

Metal Plug Connection

    • More durable and sturdy connection
    • Power plug with metal screw connector
    • The metal can last for a longer period as compared to the plastic plug
    • It can withstand sun, rain, storm, sand and other weather conditions
Metal Plug Connection

Wiring Diagram

  • 4 PIN advanced cables allow the monitor to power up the cameras
  • No need to connect the camera to another power cable
  • Durable connection with metal screw connector
7 Inch Monitor Label

7" Monitor Label

Metal Plug Connection

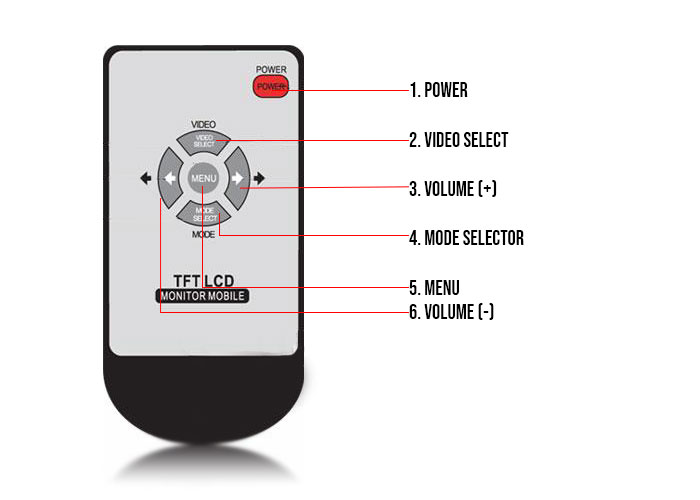

Remote

  • * Batteries Not Included


MORE INFORMATION

A 7" HD Monitor with 2x cameras that can be easily installed. This 7" monitor is suitable for all types of vehicles may it be 12V or 24V. It comes with an eyeball 4PIN CCD camera and a mini CMOS 4PIN camera.

Installing a reversing camera on your vehicle is important to keep you safer and more secure on the road. The monitor has 800x480 Digital Screen that delivers crystal clear image.

The black eyeball camera has a 120° view angle with 600TV lines delivering a clear view day and night. It comes with a powerful 12 IR LEDs. The mini CMOS camera has a 150° wide view angle that you can install invisibly in the outside areas of your vehicle.

Caravan Reversing camera kit is an important tool in driving, parking or reversing. Start getting one today.

PRODUCT HIGHLIGHTS

  • 7 Inch HD Monitor
    • 800x480 Digital Screen, Crystal Clear Image
    • This monitor can be used with Trucks / Caravans / Cars
    • Rearview image can also be shown on screen at all times
  • 2 AV Inputs
    • It can be connected up to 2 reversing cameras
    • Compatible to 12V & 24V Vehicles
  • Suitable for use with trucks/caravans/cars etc.
  • Image Display can be Rotated
    • Up, down, left and right
  • Heavy Duty 600TVL 4PIN Eyeball Reversing Camera
    • Powerful 12 LEDs for night vision
    • Colour: Black
    • 120 degree wide view angle
    • Waterproof
    • CCD image sensor made by Sharp company
  • Mini CMOS 4PIN Camera
    • 150 degree wide angle view, Sharp lens
    • Waterproof & protection against dust
  • 4PIN Cables Included
    • It comes with 1x 5 meters and 2x 10 meters 4PIN connecting cables
  • Metal Plug Connection
    • More durable and sturdy connection
    • Power plug with metal screw connector
    • The metal can last for a longer period as compared to the plastic plug
    • It can withstand sun, rain, storm, sand and other weather conditions

ITEM DESCRIPTION

  • Screen dimensions: 7inch TFT LCD
  • Dimensions: 800x480
  • System: PAL&NTSC
  • Power: DC12V-24V
  • Consumption: 5W
  • Video: Two way video input
  • Operate mode: Key operation
  • Eyeball camera: 12 IR LEDs , 600TVL, 4PIN, 120° view angle
  • Mini CMOS Camera: 4PIN, 150° view angle

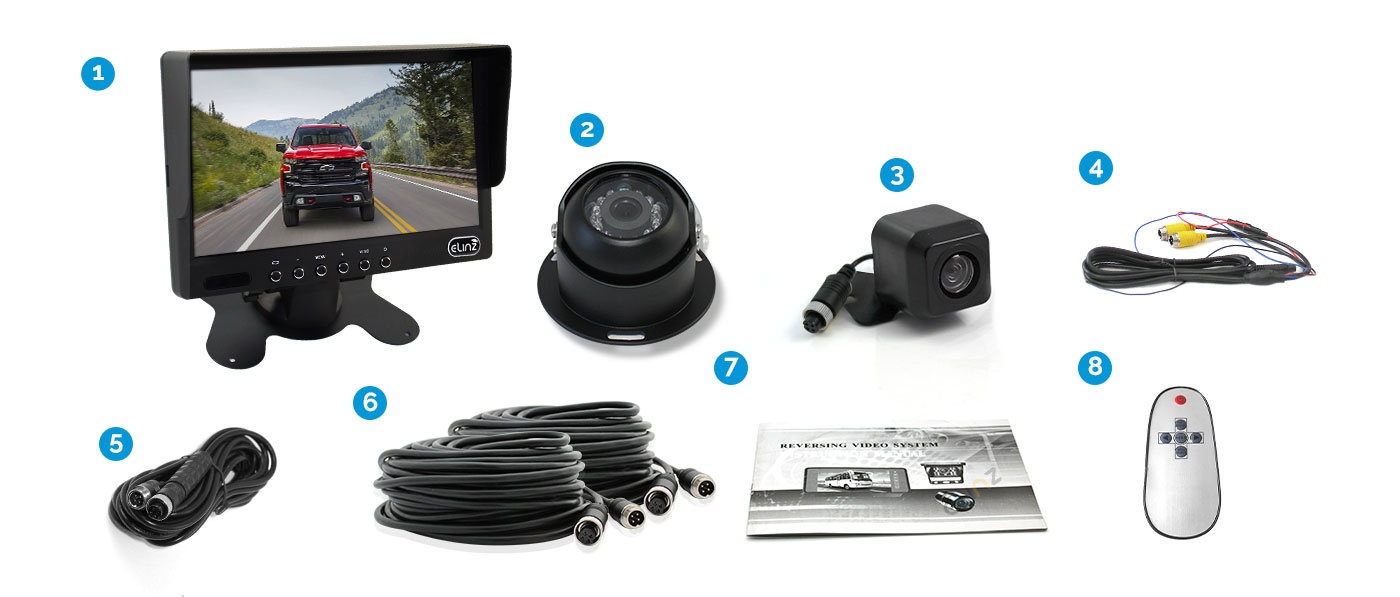

WHAT'S INCLUDED

1. 7" TFT LCD MONITOR

2. CCD Dome Reversing Camera (black)

3. CMOS Reversing Camera

4. Power Cord

5. 5m 4PIN Cable

6. 2x 10m 4PIN Cables

7. User Manual

8. Remote (*Batteries Not Included)
