Elinz Quadscreen 9" DVR 4 Camera Package Kit 360 View Reversing Forward Side 12V 24V 800TVL

SKU: DVR9N-RV4PIN-FWR-RVBUSMx2

Quadscreen 9 inch DVR 4 Camera Package Kit
9 inch Digital TFT Panel with 4 Channels

9 Inch Quadscreen Digital TFT Panel

  • 9 inch quadscreen digital panel with resolution 800*R.G.B*480. Monitor has 4 Channels that can simultaneously record live full time.
DVR 4CH Monitor Real Time Recording

3 Video Input + 1 Audio Video Input

  • V1/V2/V3/V4 switching - Can be connected up to 4 cameras, cameras can be powered up by the monitor, no extra power source required.
  • Reversing camera image can show up automatically on the screen when reversing gear is induced by connecting the trigger wire to the reversing light.
  • All cameras can be shown on the screen at all times when driving, perfect for truck or caravan that need to monitor the rearview all the time.
  • Has only 1 audio video input, it should be plugged to Ch1 for audio video input to work
360 Degree View Camera Kit

360° View for the Driver

  • One forward view camera, one reversing view camera, and 2 side view camera.
Compact Smartly Designed Cameras

Compact & Smartly Designed

  • Prevent accidents while parking or reversing.
Easy to Install Camera Monitor Kit

Mounting Bracket Included

  • No matter what the location aluminium of side camera it can be mounted easily.
Heavy Duty Cameras

Heavy Duty Make

  • Metal cased, mudproof, and shock resistant
CCD Image Sensor Cameras

CCD Image Sensor by Sharp

  • To see clear images, even at night or in low light conditions.
10M 4PIN Advance Cable

10M 4PIN Advance Cable

  • Allows the monitor to power up the camera, no need to connect another power cable to camera.
DVR 4CH Monitor Real Time Recording

Real Time Recording

  • It allows you to record real time and can see objects on their original places or position.
  • You may easily control DVR using the remote control.
Side View Camera

Side View Camera

  • Camera can capture passengers going up and down the bus for added safety
Local Playback DVR Monitor

Local Playback

  • Locally playback in channel 1 or 4 channels
SD Card Slot

Save Recordings in SD Card

  • Camera recordings from the 1 Audio Video input are to be saved in SD card and cannot be played on the monitor.
  • It can support up to 256GB SD card. (SD card not included)

    Note: Monitor do not have built-in speakers
Remote Control

Remote

  • * Powered by AAA battery
  • * No Batteries included
Reversing Camera and Monitor Wiring Diagram

Wiring Diagram

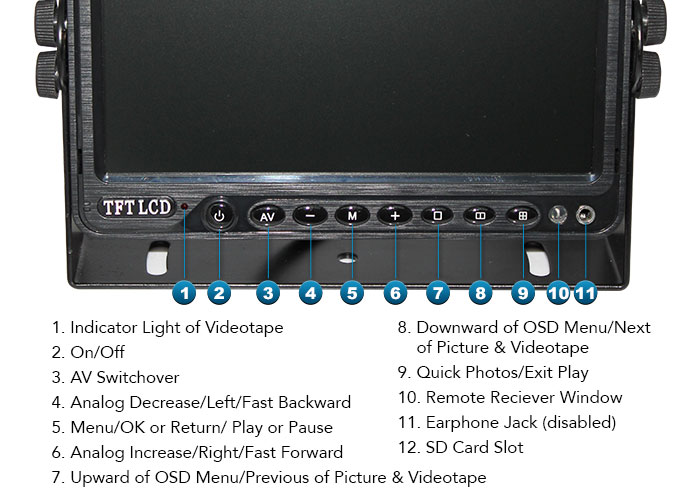

Monitor Parts

Monitor Parts

Images Modes

Image Modes

  • The monitor can show single, dual, triple and quad images if you switch over AV button(when connectiong with 4 cameras)
120 degree Wide angle camera

120 degree Wide angle

  • Features 120 degrees viewing angle to show side view of vehicle.
IP68 Waterproof Side Reverse Camera

IP68 Waterproof

  • This camera is completely waterproof with an IP68 rating.
800 TV Lines Camera

800 TV Lines Side View Camera

  • With high quality CCD Sensor this camera provides better picture's clarity, colour contrasting and sharpness than Normal CMOS camera
5 IR LED Camera

5 IR LED

  • It has 5pcs IR LEDs to provide better night vision and clear images in low light especially at night circumstances.
Extruded Aluminum Housing Camera

Extruded Aluminum Housing

  • Made of extruded aluminum case which is provides structural integrity, ensuring that the camera can perform well even under extreme conditions.
Suitable with 12V/24V power supply side camera

Suitable with 12V/24V power supply

  • It can be used with trucks/ bus/ caravans/ cars etc.
Product views

Product Views

Camera and Monitor Dimensions

Product Dimensions

MORE INFORMATION

This 9" DVR reversing camera kits have 4x cameras one forward view camera), one reversing view camera and 2 side view camera providing a 360 degree view for the driver that can be used especially for buses or trucks. It has quadscreen monitor that can show the 4 camera views at the same time.

4 Channels simultaneously to full time live record and 3 Video Input + 1 Audio Video Input. The forward view and reverse camera have 120 degree wide view angle and the side view cameras have 120 degree angle with 800TVL. All cameras have CCD image sensor made by Sharp Company and support night vision.

Installing a reversing camera monitor kit especially on large vehicles can surely add up safety and convenience in driving. It reduces blind spots and gives you more confidence in driving.

PRODUCT HIGHLIGHTS

  • 9 Inch Quadscreen Digital TFT Panel
    • 9 inch quadscreen digital panel with resolution 800*R.G.B*480. Monitor has 4 Channels that can simultaneously record live full time.
  • 3 Video Input + 1 Audio Video Input
    • V1/V2/V3/V4 switching - Can be connected up to 4 cameras, cameras can be powered up by the monitor, no extra power source required.
    • Reversing camera image can show up automatically on the screen when reversing gear is induced by connecting the trigger wire to the reversing light.
    • All cameras can be shown on the screen at all times when driving, perfect for truck or caravan that need to monitor the rearview all the time.
    • Has only 1 audio video input, it should be plugged to Ch1 for audio video input to work
  • 360° View for the Driver
    • One forward view camera, one reversing view camera, and 2 side view camera.
  • Compact & Smartly Designed
    • Prevent accidents while parking or reversing.
  • Mounting Bracket Included
    • No matter what the location aluminium of side camera it can be mounted easily.
  • Heavy Duty Make
    • Metal cased, mudproof, and shock resistant
  • CCD Image Sensor by Sharp
    • To see clear images, even at night or in low light conditions.
  • 10M 4PIN Advance Cable
    • Allows the monitor to power up the camera, no need to connect another power cable to camera.
  • Real Time Recording
    • It allows you to record real time and can see objects on their original places or position.
    • You may easily control DVR using the remote control.
  • Side View Camera
    • Camera can capture passengers going up and down the bus for added safety.
  • Local Playback
    • Locally playback in channel 1 or 4 channels
  • Save Recordings in SD Card
    • Camera recordings from the 1 Audio Video input are to be saved in SD card and cannot be played on the monitor.
    • It can support up to 256GB SD card. (SD card not included)

      Note: Monitor do not have built-in speakers
  • Remote Control
  • Wiring Diagram
  • Monitor Parts
  • Image Modes
    • The monitor can show single, dual, triple and quad images if you switch over AV button(when connectiong with 4 cameras)
  • 120 degree Wide angle
    • Features 120 degrees viewing angle to show side view of vehicle.
  • IP68 Waterproof
    • This camera is completely waterproof with an IP68 rating.
  • 800 TV Lines Side View Camera
    • With high quality CCD Sensor this camera provides better picture's clarity, colour contrasting and sharpness than Normal CMOS camera.
  • 5 IR LED
    • It has 5pcs IR LEDs to provide better night vision and clear images in low light especially at night circumstances.
  • Extruded Aluminum Housing
    • Made of extruded aluminum case which is provides structural integrity, ensuring that the camera can perform well even under extreme conditions.
  • Suitable with 12V/24V power supply
    • It can be used with trucks/ bus/ caravans/ cars etc.

ITEM DESCRIPTION

  • 9 inch digital TFT panel
  • Aspect ratio:16:9 image
  • Resolution:800*R.G.B*480
  • Monitor controlled by buttons on panel
  • DVR controlled by the remote
  • 4 Channels simultaneously to full time live record
  • System: PAL & NTSC Auto-switching
  • Video decode H.264
  • Audio decode ADPCM
  • Recording by manually: time setting, alarm and moving detect
  • Video search: time retrieval, fact retrieval, channel retrieval
  • 3 Video Input + 1 Audio Video Input
  • Full image/4 images adjustable
  • Picture adjust with single and quad pictures
  • Recording saved to SD card (support up to max 256gb sd card, sd card not included, to be purchased separately)
  • Recording speed PAL:25 FPS NTSC:30 FPS
  • Local playback in channel 1 or 4 channels
  • Alarm in:4 switching value (Optional)
  • Interface for saving:1 SD card slot
  • One way ignition signal
  • 8V/35V power supply
  • LEDs: 5 IR LEDs
  • Image Sensor: 800 TVL CCD image sensor (made by SHARP company)
  • Min illumination: 0 Lux (5 IR LEDs)
  • Camera Angle: 120 degree wide angle
  • Colour: Black
  • Compatibility: NTSC/ PAL
  • Horizontal Resolution: 800 TV Lines
  • Connection: 4 PIN
  • Lens: Glass
  • Housing: Extruded Aluminum
  • IP Rating: IP68
  • Power:1 W
  • Voltage: DC 12-24V

WHAT'S INCLUDED

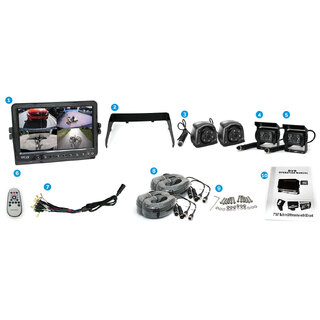

1. 1x 9" Quadscreen Digital Monitor

2. 1x Sun Shade

3. 2x 4PIN Side View Reversing Cameras 800TVL

4. 1x 4PIN Forward View Camera 600TVL

5. 1x 4PIN Reversing Camera 600TVL

6. 1x Remote (* No Batteries included)

7. 1x Power Cord

8. 4x 10M 4PIN Cables

9. Screws

10. User Manual

Quadscreen 9 inch DVR Monitor, 2x Camera side view camera, 1x reverse camera, 1x forward view camera
