Quadscreen 9" DVR 4 Camera Package Kit 360 View Reversing Forward Side 12V 24V

SKU: DVR9N-RV4PIN-FWR-BUSIDEx2

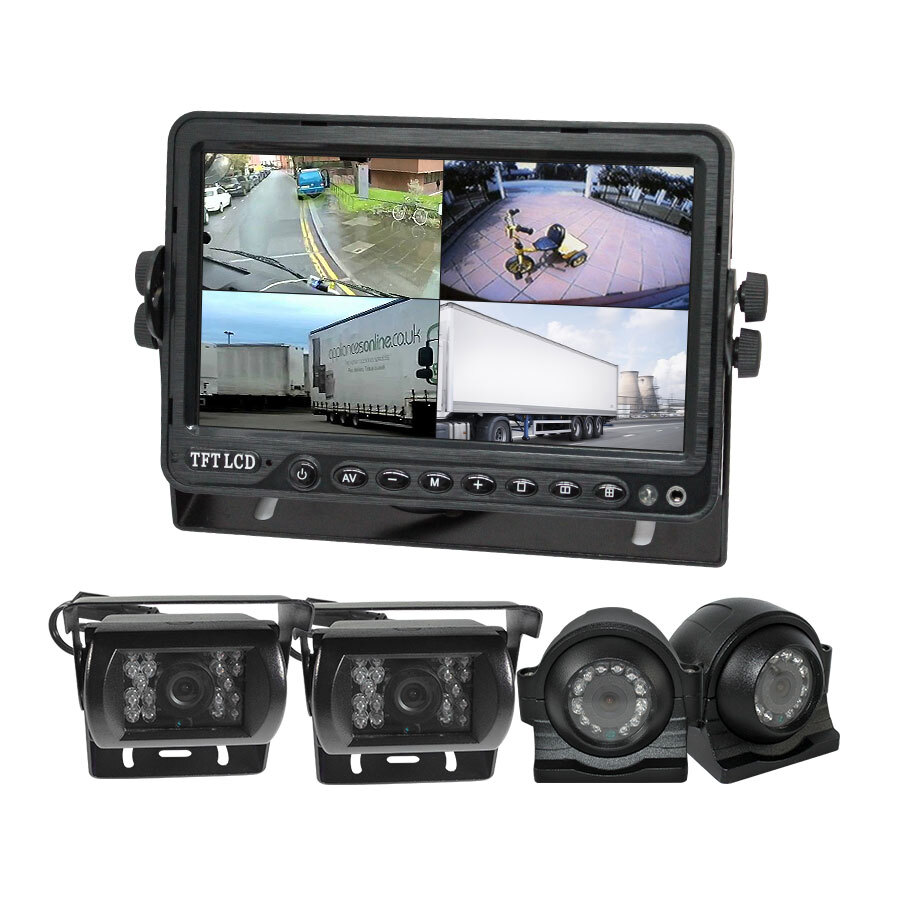

9 inch DVR 4 Camera Package Kit 360 View Reversing Forward Side

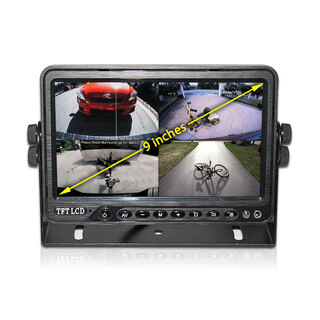

9 Inch Quadscreen Digital TFT Panel Monitor

9 Inch Quadscreen Digital TFT Panel

  • 9 inch quadscreen digital panel with resolution 800*R.G.B*480. Monitor has 4 Channels that can simultaneously record live full time.
4 Input 1 Output Reverse Camera Monitor

3 Video Input + 1 Audio Video Input

  • V1/V2/V3/V4 switching - Can be connected up to 4 cameras, cameras can be powered up by the monitor, no extra power source required.
  • Reversing camera image can show up automatically on the screen when reversing gear is induced by connecting the trigger wire to the reversing light.
  • All cameras can be shown on the screen at all times when driving, perfect for truck or caravan that need to monitor the rearview all the time.
  • Has only 1 audio video input, it should be plugged to Ch1 for audio video input to work
DVR 4CH Monitor Real Time Recording

Real Time Recording

  • It allows you to record real time and can see objects on their original places or position.
  • You may easily control DVR using the remote control.
Reversing Camera 360 degree view

360° View for the Driver

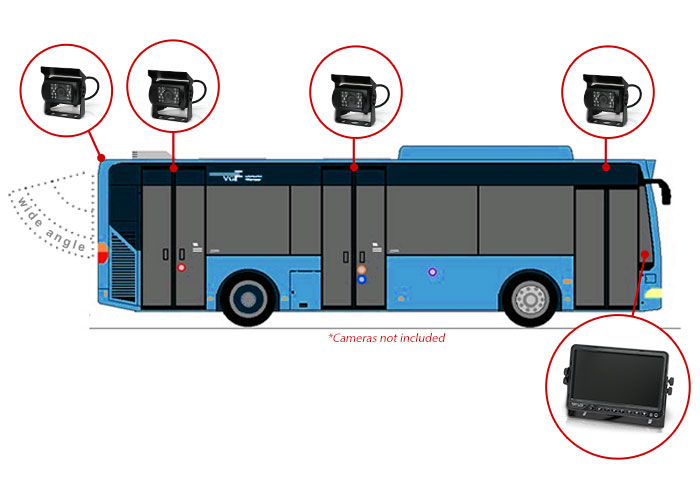

  • One forward view camera, one reversing view camera, and 2 side view cameras.
Smartly design parking camera

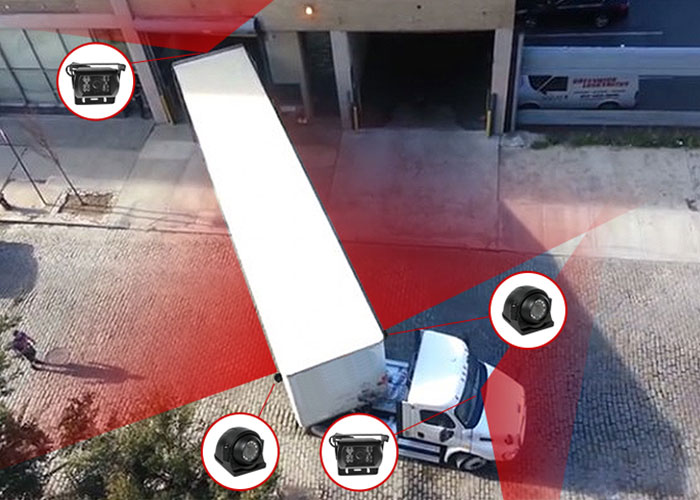

Compact & Smartly Designed

  • Helps prevent accidents while parking or reversing.
Reverse Side Camera Mounting Bracket

Mounting Bracket included

  • No matter what the location aluminium of side camera it can be mounted easliy.
Heavy duty rearview cameras

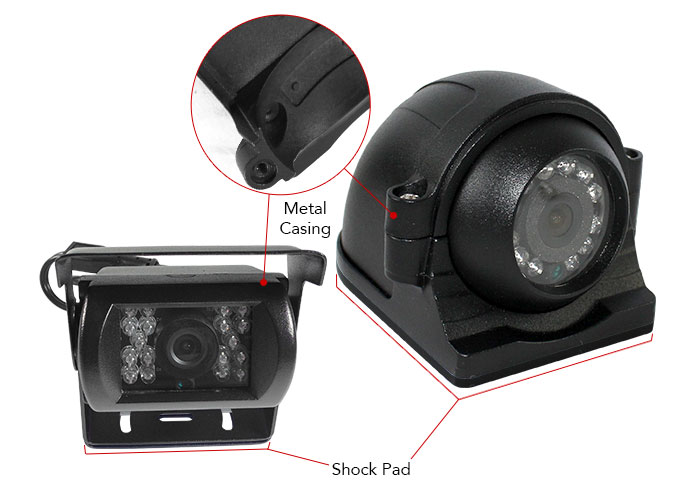

Heavy Duty Make

  • Metal cased, mudproof, and shock resistant
Rearview Camera CCD image Sensor

CCD Image Sensor by Sharp

  • To see clear images, even at night or in low light conditions.
10M 4PIN Advanced Cable for Camera

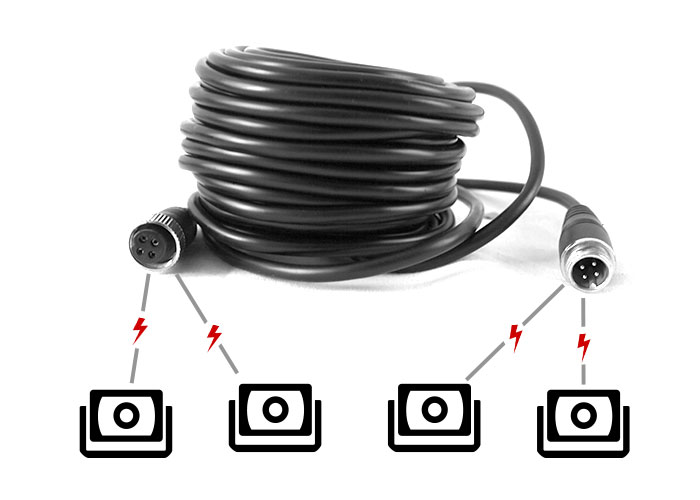

10M 4PIN Advanced Cable

  • Allows the monitor to power up the camera, no need to connect another power cable to camera.
Side View Camera

Side View Camera

  • Camera can capture passengers going up and down the bus for added safety.
Local Playback DVR Monitor

Local Playback

  • Locally playback in channel 1 or 4 channels.
SD Card Slot

Save Recordings in SD Card

  • Camera recordings from the 1 Audio Video input are to be saved in SD card and cannot be played on the monitor.
  • It can support up to 256GB SD card. (SD card not included)

    Note: Monitor do not have built-in speakers
Monitor Bracket Screw Lock

Bracket Screw Lock

  • With the bracket screw lock, it can hold the monitor in placed.
Monitor Rotational Angle Adjustment

Rotational Angle Adjustment

  • You can adjust monitor view depending on your preference
Remote Control

Remote

  • * No Batteries included
Monitor Button Labels

Button Panel Labels

Reversing Camera and Monitor Wiring Diagram

Wiring Diagram

Monitor Image Modes

Image Modes

Menu Operation Instruction

Menu Operation Instruction

Product Dimensions

Product Dimensions

MORE INFORMATION

Quadscreen 9" DVR 4 Camera Package Kit 360 View Reversing Forward Side 12V 24V Bus Trucks Caravan

The most challenging part about managing a fleet service or trucking business is how to ensure your drivers and trucks safely. There are many machines and innovations that help you monitor just this but can be quite expensive. What you will only need is to ensure the safety of both your vehicle and drivers. For this reason, you may only need an excellent performing reversing camera kit to help your field workers reach their destinations on time and improve their safety.

This 9" DVR reversing camera kits have 4x cameras one forward view camera), one reversing view camera and 2 side view camera providing a 360-degree view for the driver that can be used mainly for buses or trucks. It has quadscreen monitor that can show the 4 camera views at the same time. 4 Channels simultaneously to full time live record and 4 ways video input, 4 ways audio input, 1-way video output. The forward view and reverse camera have 120-degree wide view angle, and the side view cameras have a 90-degree angle. All cameras have CCD image sensor made by Sharp Company and support night vision. Installing a reversing camera monitor kit especially on large vehicles can surely add up safety and convenience in driving. It reduces blind spots and gives you more confidence in driving.

  • The monitor can show single, dual, triple and quad image if you switch over AV button
  • The monitor can display single, dual, triple and quad image if you change over AV button
  • Reliable and durable reversing camera. Instead of showing mirror images like what most reverse cameras available today are doing, this camera system lets you see pictures in forwarding view.
  • Car, Trucks, Bus rearview system + Real-time recorder
  • The cameras are built and designed to last. Also, each camera comes in a hard metal case.

PRODUCT HIGHLIGHTS

  • 9 inch digital TFT panel with 4 Channels simultaneously to full time live recording
    • Quadscreen recording support up to 4 cameras
    • All camera views can be shown on the screen at all times when driving.
    • The monitor can show single, dual, triple and quad image if you switch over AV button
  • 3 Video Input + 1 Audio Video Input
    • V1/V2/V3/V4 switching - Can be connected up to 4 cameras, cameras can be powered up by the monitor, no extra power source required.
    • Reversing camera image can show up automatically on the screen when reversing gear is induced by connecting the trigger wire to the reversing light.
    • All cameras can be shown on the screen at all times when driving, perfect for truck or caravan that need to monitor the rearview all the time.
    • Has only 1 audio video input, it should be plugged to Ch1 for audio video input to work
  • Forward Camera real time images
    • Reliable and durable reversing camera. Instead of showing mirror images like what most reverse cameras available today are doing, this camera system lets you see images in forward view. This basically means that when you use the camera to record what's in front or even at the back of your vehicle, you'll see the objects in their original places or position.
  • Save Recordings in SD Card
    • Camera recordings from the 1 Audio Video input are to be saved in SD card and cannot be played on the monitor.
    • It can support up to 256GB SD card. (SD card not included)

      Note: Monitor do not have built-in speakers
  • Car, Trucks, Bus rearview system + Real time recorder
    • Perfect for truck or Caravan that need to monitor the rearview all the time
  • Reversing camera image can show up automatically on screen when reversing gear is induced.
  • Tough and heavy-duty camera
    • The cameras are built and designed to last. In addition, each camera comes in a hard metal case. Because it is waterproof and mud proof, it can withstand abuse and be exposed to the elements for an extended period of time. The reversing camera is shock resistant, too, so it can withstand strong vibrations without affecting picture quality.
  • CCD image sensor from Sharp
    • The reversing cameras feature a CCD image sensor from the Sharp Company for better picture clarity, colour contrast, and sharpness.
    • They also have night vision as each camera comes infrared LED to enable users to see clear images, even at night or in low light conditions.
    • Heavy duty CCD camera is hard metal cased waterproof and mud proof. Can last for longer without heating up so you can show the rearview at all time.
  • Cameras come with 10M advanced 4 PIN cable
    • Allowing the monitor to power up the camera no need to connect another power cable to camera.

ITEM DESCRIPTION

Monitor

  • 9 inch digital TFT panel
  • Aspect ratio:16:9 image
  • Resolution:800*R.G.B*480
  • Monitor controlled by buttons on panel
  • DVR controlled by the remote
  • 4 Channels simultaneously to full time live record
  • System: PAL & NTSC Auto-switching
  • Video decode H.264
  • Audio decode ADPCM
  • Recording by manually: time setting, alarm and moving detect
  • Video search: time retrieval, fact retrieval, channel retrieval
  • 4 ways video input,4 ways audio input, 1 way video output
  • Full image/4 images adjustable
  • Picture adjust with single and quad pictures
  • Recording saved to SD card (support up to max 256gb sd card, sd card not included, to be purchased separately)
  • Recording speed PAL:25 FPS NTSC:30 FPS
  • Local playback in channel 1 or 4 channels
  • Alarm in: 4 switching value (Optional)
  • Interface for saving:1 SD card slot
  • One way ignition signal
  • 8V/35V power supply

2x Side View Cameras

  • 2x Side View Cameras
  • Camera Angle: 90 degree wide angle
  • LEDs: 12 IR LEDs
  • IP68 waterproof rating
  • Image Sensor: CCD image sensor (made by SHARP company)
  • Compatibility: NTSC/ PAL switch
  • Horizontal Resolution: 420 TV Lines
  • Connection: Advanced 4 PIN cable. Allowing the monitor to power up the camera no need to connect another power cable to camera*
  • NTSC/ PAL switch
  • Robust Heavy Duty Make - 10G Vibration Ultra Bright Wavelength

Forward View Camera and Reverse Camera

  • Forward View Camera and Reverse Camera
  • Camera Angle 120 degree Wide angle
  • LEDs: 18 IR LEDs
  • Colour infrared night vision waterproof CCD reverse camera
  • Image Sensor: CCD image sensor (made by SHARP company)
  • Suitable for use with trucks/ caravans/ cars etc. Thanks to this heavy duty CCD crystal clear 12/24-volt applicable reverse camera
  • Clear view day or night
  • Advanced 4 PIN cable. Allowing the monitor to power up the camera no need to connect another power cable to camera*

WHAT'S INCLUDED

1. 1x 9" Quadscreen Digital Monitor

2. 1x Sun Shade

3. 2x 90-degree View Cameras

4. 1x Remote (* No Batteries included)

5. 1x Forward view Camera

6. 1x Reversing Camera

7. 1x Power Cord

8. 4x 10M 4PIN Cables

9 inch DVR Splitscreen 4 Camera Package Kit 360 View Reversing Forward Side

  • Video

*Product on the video may differ from the actual product. Video is displayed to show the importance and use of the product.
