Side View Mirror Arm Rearview Camera 600TVL IP68 4PIN CCD Truck Forklift Backhoe

SKU: RVBLKHOE10M

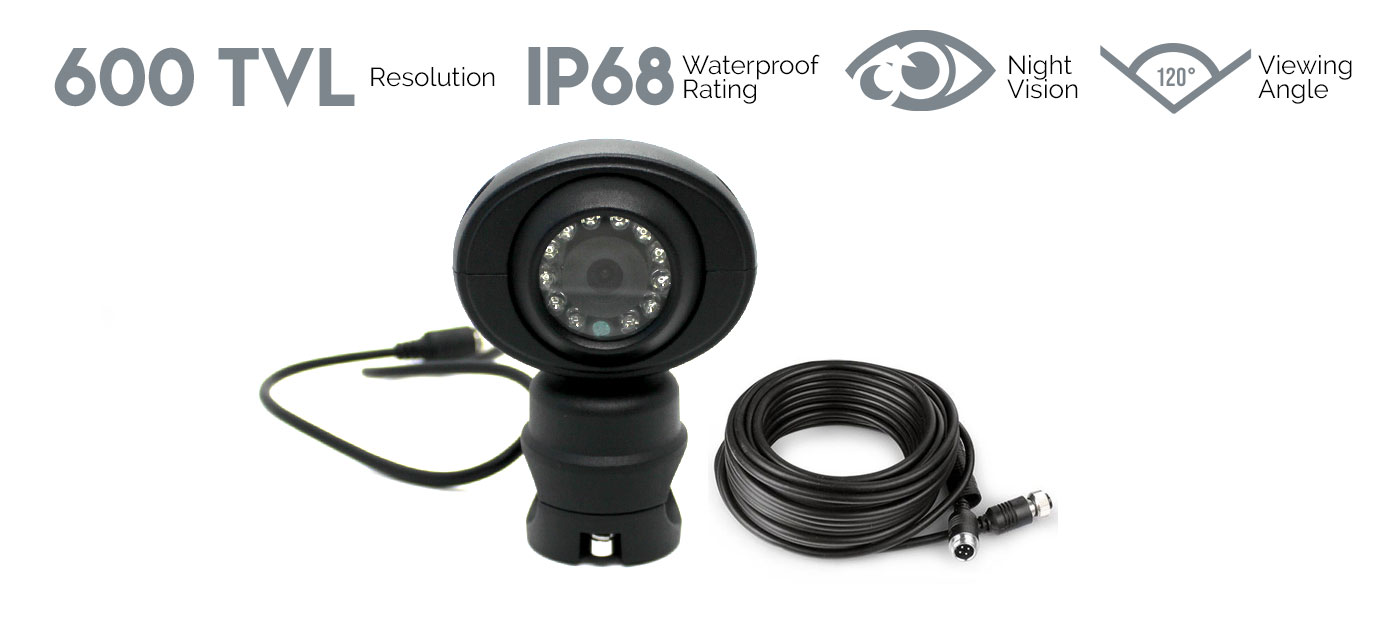

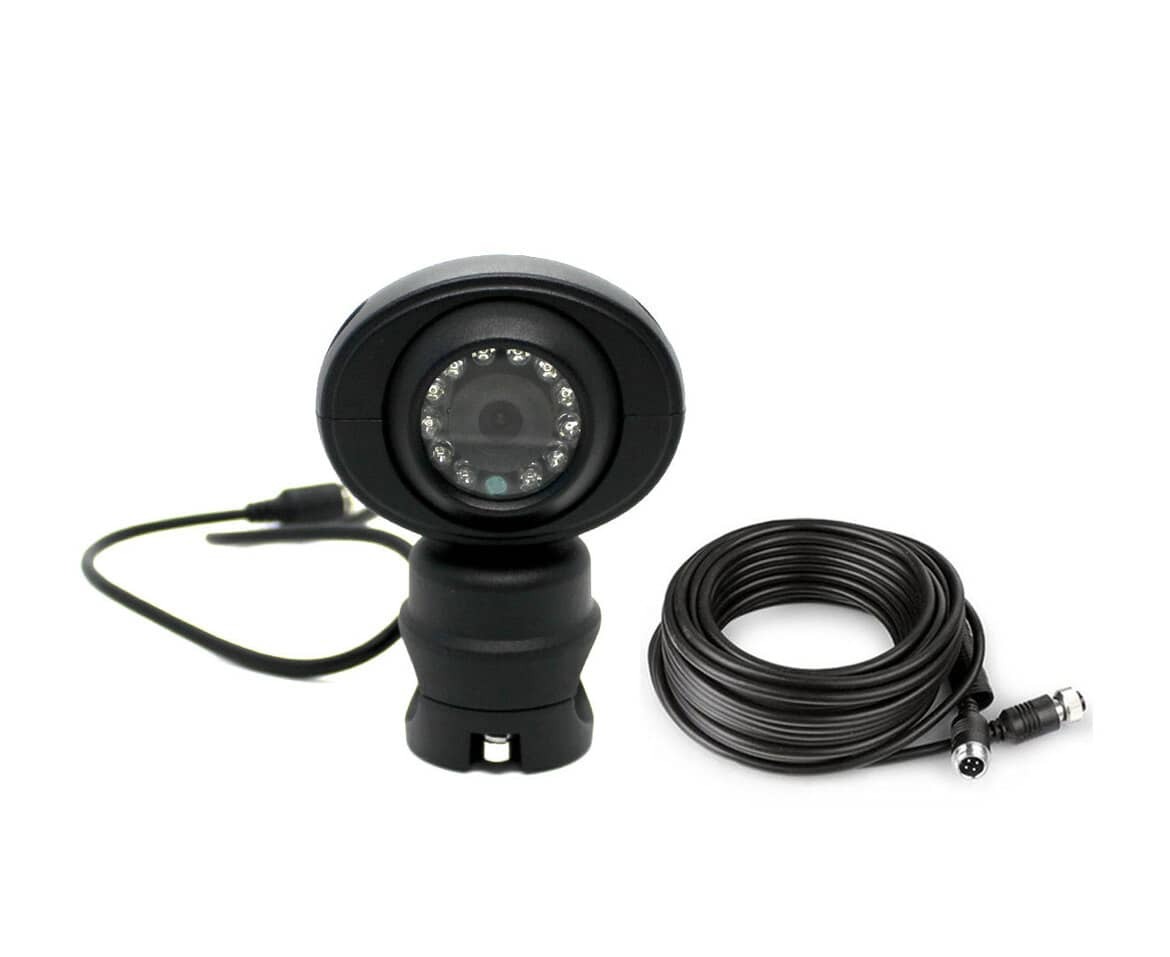

Side view rear view camera with 600 TVL and connector cable
image comparison of 600TVL to non-600 TVL image

600TVL Resolution

  • Offers colour high-resolution images 600TV lines, which means you can get very good video image.
camera mounted on side mirror

Universal Side Mirror Camera

  • Universal Side camera with ball n' socket housing for versatile view angle adjustment designed specifically to fit most side mirror frame brackets. Provide better view and let you see clearly.
side view camera with caption ccd image sensor

CCD Image Sensor

  • The CCD image sensor (made by SHARP company) outputs digital signals that has better picture's clarity color contrasting and sharpness than CMOS camera
side view camera in rain with caption IP68 waterproof

IP68 Waterproof

  • Camera is protected from water and dust ingress, it can effectively prevent water from penetrating into the camera.
truck from top view navigating through narrow street with caption "120 degree angle"

120° Viewing Angle

  • Camera is equipped with a 120° viewing angle with 6 layered all glass lens perfect for checking unseen blind spots.
camera with 4 pin connectors

4PIN Connection

  • Conveniently and securely install on Backhoe, Forklift, Excavator, Bulldozer, Grader, Loader, Dump Truck, Trailer Truck, other industrial vehicles and delivery & commercial Vans using 4 PIN cable to connect the monitor to the camera.
  • One cable solution deals with both power and signal transmission.
  • Includes 10m 4PIN cable.
side view camera/reversing camera with caption "easy to install"

Easy to Install

  • Camera gets power from monitor thru 4PIN cable with constant 12V power.
  • The brackets are designed to be easily installed on a side-view mirror's arm or any round bar to clip onto.
various heavy machinery, with side view camera superimposed with caption "applications"

Application

  • Compatible to 12V 36V Vehicles - This reverse camera works on both 12V and 36V vehicles.
  • Suitable to use for Backhoe, Forklift, Excavator, Bulldozer, Grader, Loader, Dump Truck, Trailer Truck and other vehicles to promote safety and see clearly also minimize blind spots.
  • this will work on almost all vehicles including industrial ones
camera dimensions

Dimensions



MORE INFORMATION

Driving, maneuvering and parking a large vehicle is truly not an easy thing to do. Most of us use reversing camera to help us out, but an additional side view mirror camera will be very helpful too especially to those driving Backhoe, Forklift, Excavator, Bulldozer, Grader, Loader, Dump Truck, Trailer Truck and other industrial vehicles.

This side view mirror camera has a 600TVL resolution and CDD image sensor made by SHARP company, that will surely provide you clear and sharp images. You don't even have to worry at night, as it has 12 IR LEDs to provide excellent night vision.

With is IP68 waterproof rating, camera is protected from water and dust ingress, it can effectively prevent water from penetrating into the camera.

It is very easy to install, the camera gets power from monitor thru 4PIN cable with constant 12V power and this package comes with 10M 4PIN cable. With brackets that are designed to be easily installed on a side-view mirror's arm or any round bar to clip onto.

Get this side view Camera today to have a safer driving and ease up your worries.

PRODUCT HIGHLIGHTS

  • 600TVL Resolution
    • Offers colour high-resolution images 600TV lines, which means you can get very good video image.
    • Universal Side Mirror Camera
    • Universal Side camera with ball n' socket housing for versatile view angle adjustment designed specifically to fit most side mirror frame brackets. Provide better view and let you see clearly.
  • CCD Image Sensor
    • The CCD image sensor (made by SHARP company) outputs digital signals that has better picture's clarity color contrasting and sharpness than CMOS camera
  • IP68 Waterproof
    • Camera is protected from water and dust ingress, it can effectively prevent water from penetrating into the camera.
  • Excellent Night Vision
    • With 12 infra-red lights it can provide clear images at night or low light circumstances.
  • 120° Viewing Angle
    • Camera is equipped with a 120° viewing angle with 6 layered all glass lens perfect for checking unseen blind spots.
  • 4PIN Connection
    • Conveniently and securely install on Backhoe, Forklift, Excavator, Bulldozer, Grader, Loader, Dump Truck, Trailer Truck, other industrial vehicles and delivery & commercial Vans using 4 PIN cable to connect the monitor to the camera.
    • One cable solution deals with both power and signal transmission.
    • Includes 10m 4PIN cable.
  • Easy to Install
    • Camera gets power from monitor thru 4PIN cable with constant 12V power.
    • The brackets are designed to be easily installed on a side-view mirror's arm or any round bar to clip onto.
  • Application
    • Compatible to 12V 36V Vehicles - This reverse camera works on both 12V and 36V vehicles.
    • Suitable to use for Backhoe, Forklift, Excavator, Bulldozer, Grader, Loader, Dump Truck, Trailer Truck and other vehicles to promote safety and see clearly also minimize blind spots.
    • this will work on almost all vehicles including industrial ones

ITEM DESCRIPTION

  • Image Sensor: 1/3 600TVL Sharp CCD
  • Video System: PAL
  • Effective Pixels: PAL:752(H)*582(V)
  • Horizontal Resolution: 600 TVL
  • Min Illumination: 0.01Lux (0 Lux IR on)
  • SNR: ≥48dB
  • Electronic Shutter: 1/50-1/10000(S)
  • Video Output: 1.0V±0.5Vp-p 75Ω
  • View Angle: 120°
  • Working Voltage: DC9V-12V±0.5V
  • Consumption: 80mA±10%
  • Waterproof Rate: IP68

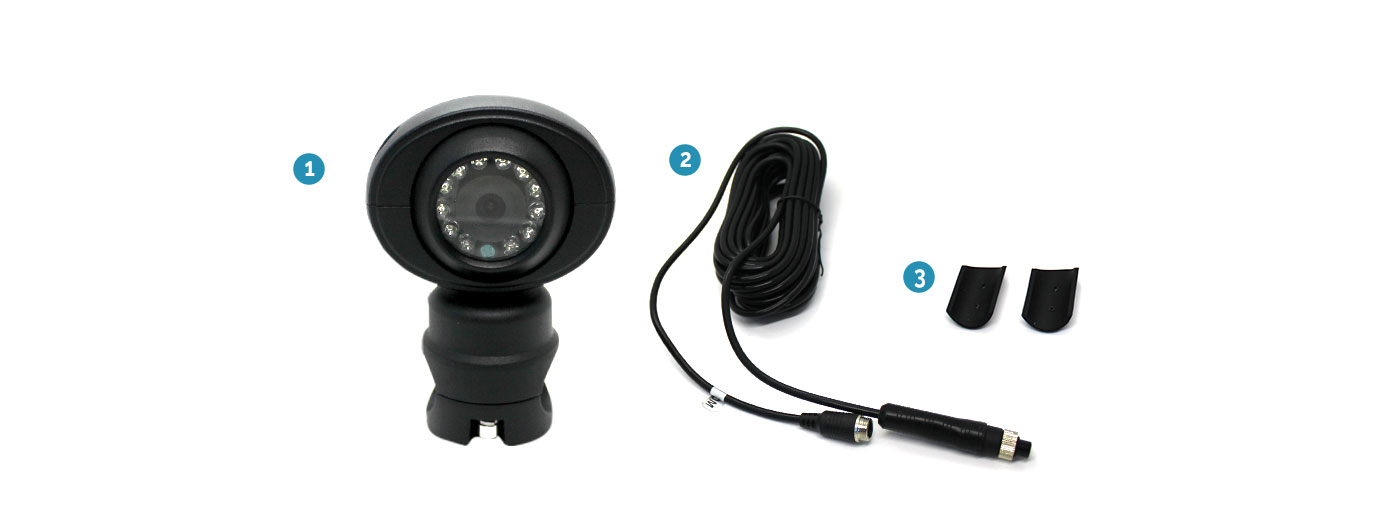

WHAT'S INCLUDED

1. 1x Side view mirror camera

2. 1x 10M 4PIN cable

3. Rubber pads for Bracket

side view camera, connector and brackets
